Dump truck trailer end dump semi trailer for sale

75 T dump truck trailer end dump semi trailer for sale

FOB Price:

$28,800.00

Weight	12600 kg
Dimensions	900 × 250 × 360 cm

Price range: $18,800-$29,800 due to different Specs.

I want a .

Description

75 ton loading capacity: This end dump semi trailer is heavy duty designed with large capacity.

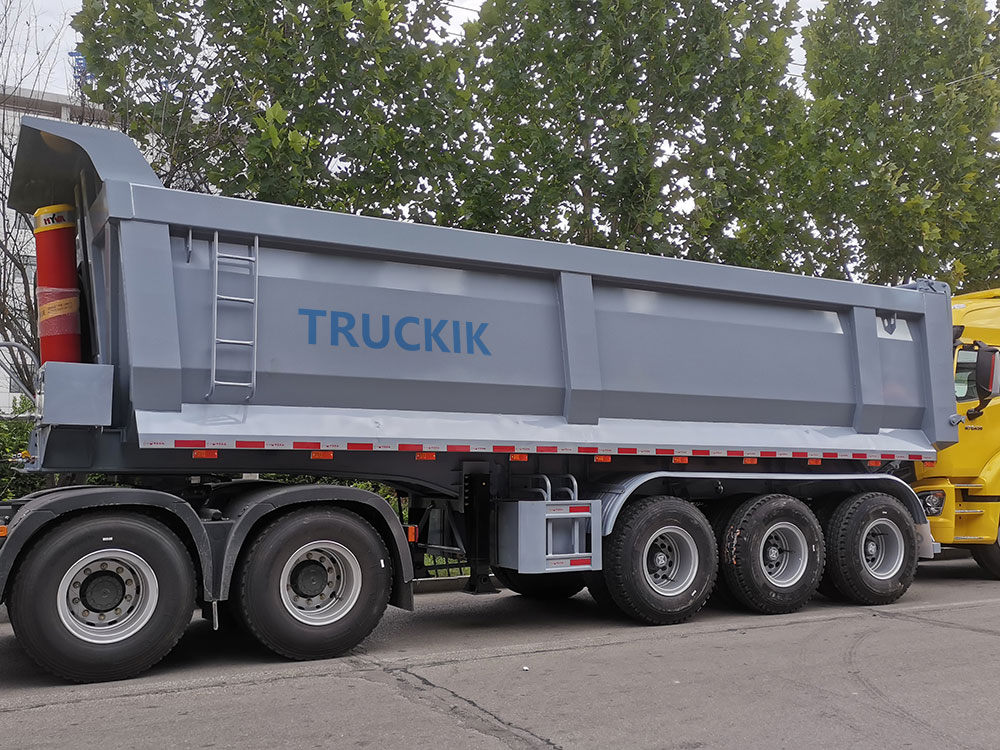

U shape for efficiency: U shape box, the dump truck trailer can reach 100% of discharge rate, saving time and labor;
Capable of rough conditions: international standard heavy-duty chassis and running system applied to cope with rough road conditions;
Surface treatment: zinc-rich-primer and polyurethane topcoat as customers’ choices;
Options: other valuable features are of your participation, just tell us your idea and we will work out the right trailer for you.

Dump truck trailer semi end dump for sale

Read about us for more

Specification:

Length: 9,000mm Width: 2,500mm Height: Approx. 3,600mm

Kingpin location: 1000mm from the front face of the front bolster

Axle spacer: 4,410mm+1,310mm+1,310mm

Landing gear location: 2,725mm behind the kingpin location

(The above dimension will be adjusted according to the tractor specification)

Payload: 75,000kg

Tare weight: Approx. 12,600kg

G.V.W.R: Approx. 87,600kg

Frame & Structure:

Main beam: Main beam height: 500mm.

Material: High tensile steel Q345 Automatic submerged arc welding.

Beam Spec: Height 500mm; Top plate 14mm; Bottom plate 16mm; Middle plate 6mm.

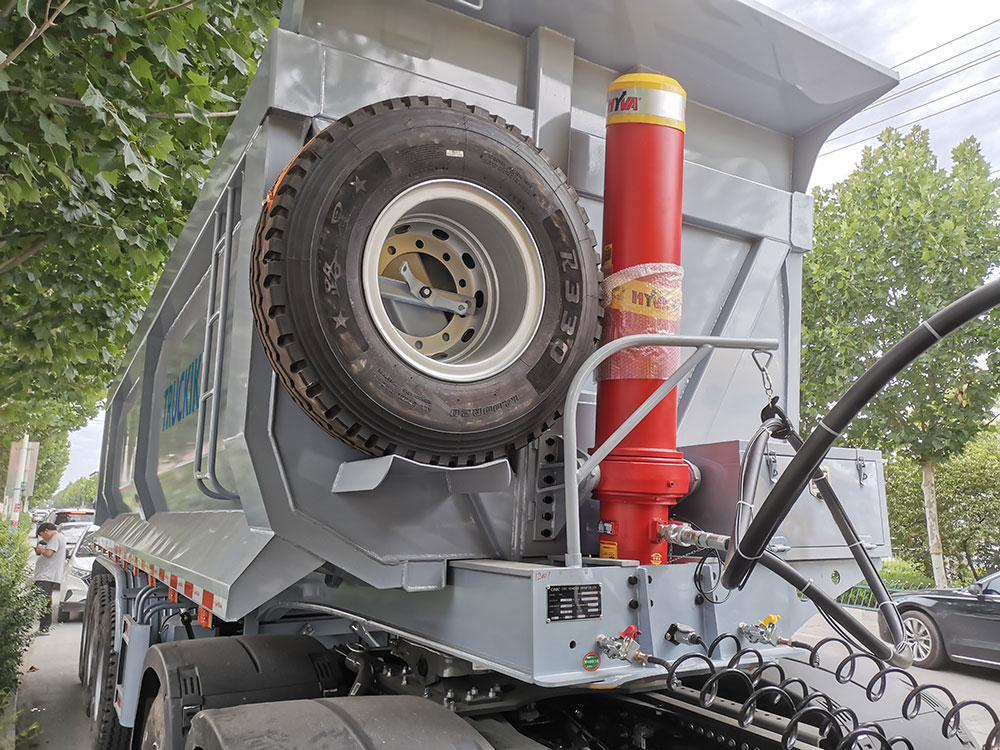

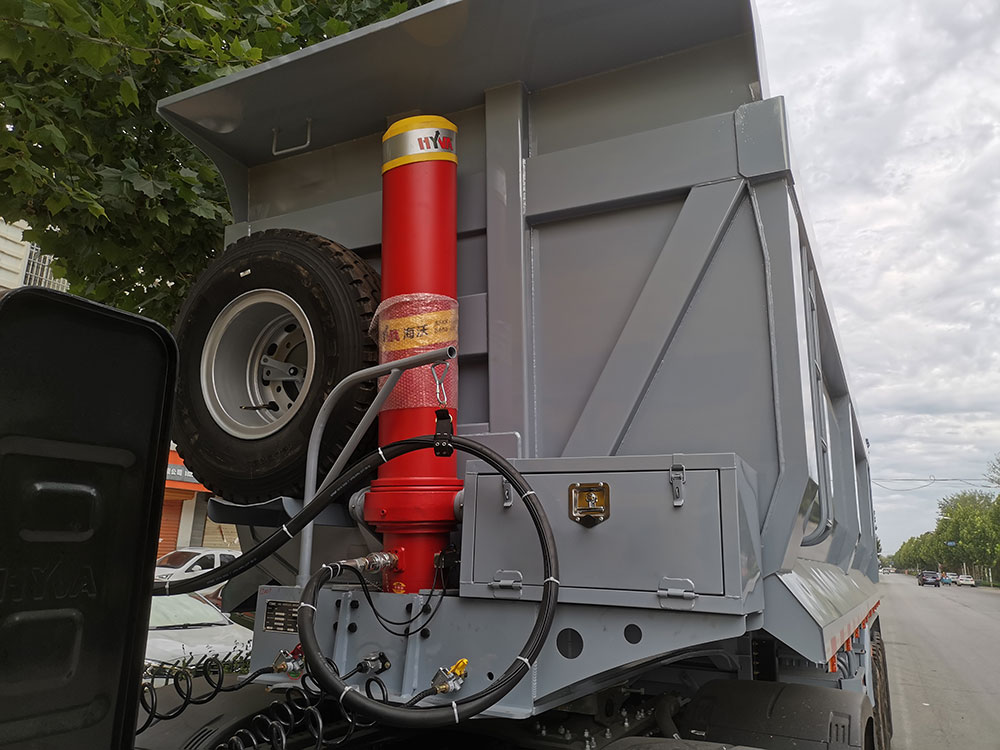

Hydraulic: Full set of HYVA 214*9030 hydraulic system

Deck floor: 6mm steel floor.

Welding standard: All welding is to be done by qualified welders per applicable national standard.

Kingpin: JOST 2” kingpin changeable.

Painting: Shot blast at SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um.

Running Gears:

Suspension: Mechanical suspension, leaf spring, heavy duty China

Axle: square beam axle, 16 ton*3pcs capacity, China.

Brake system: Dual line pneumatic brake, With ABS system.

Brake chamber: Target type 30/30 spring brake system on 2 axles, China.

Air tank: 40L, 2 pcs, China.

Emergency relay valve: WABCO; China.

Rim: 8.5-20 steel disc wheel, 10 holes ISO, 12 pcs. China

Tire: Triangle brand, 12.00R20, 12 pcs. China

Landing gear: JOST landing gear.

Electrical System:

Voltage: 24 Volt.

Receptacle: 7-way socket.

Front marker Lamp: LED lamp. Including Front marker Lamp; Side marker lamp; Turn signal lamp; Rear lamp.

Reflector: Triangle reflector, red color.

Wiring: Electric cable protected by PVC conduit on main frame.

Accessories:

Mud guard: Steel mud guard.

Spare wheel carriers: 1 pc.

Tool box: 1 pc.
