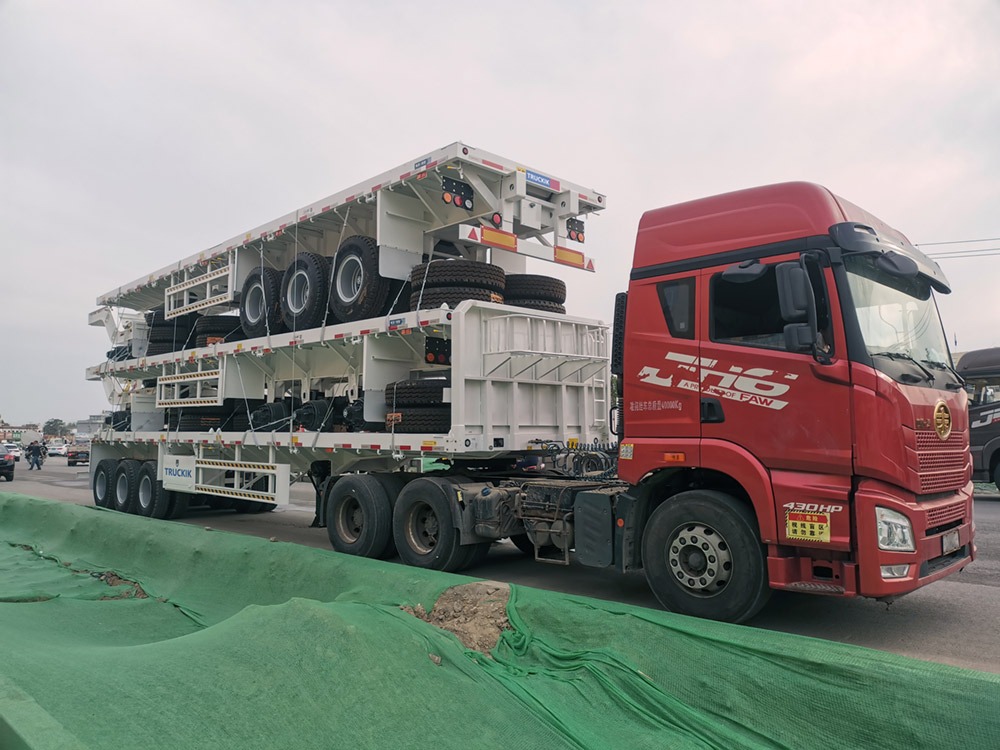

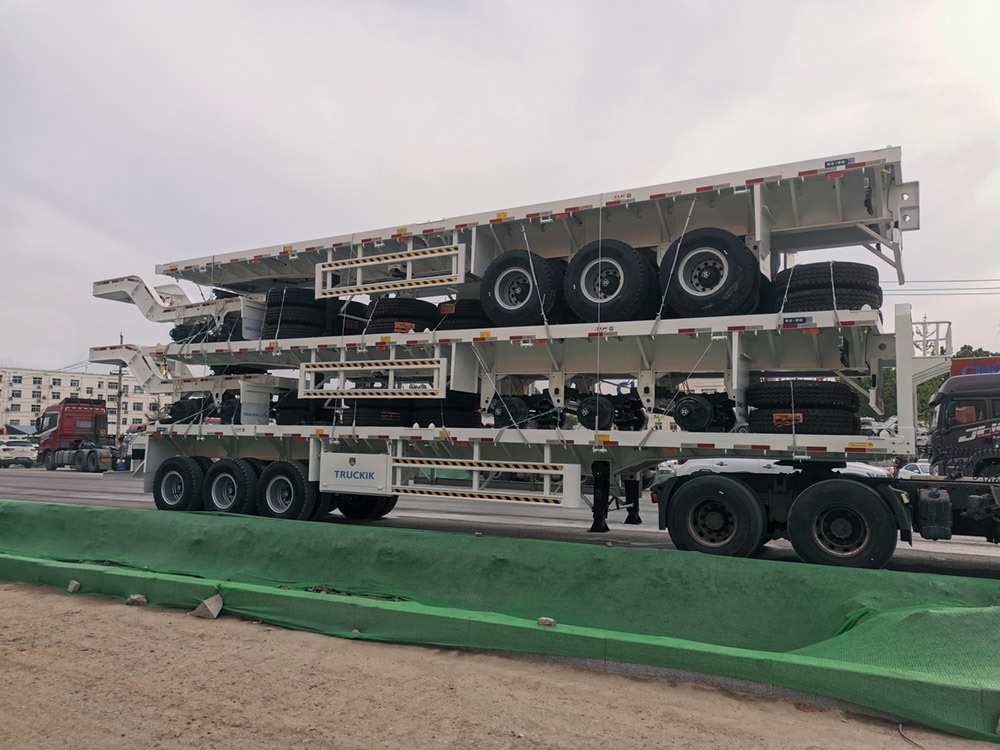

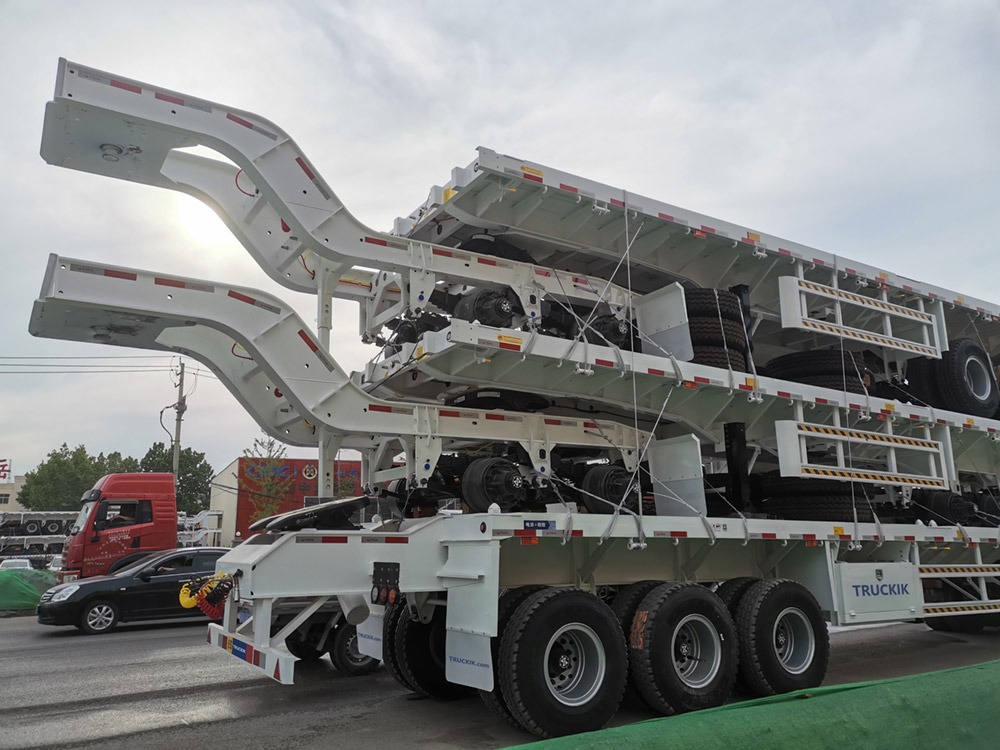

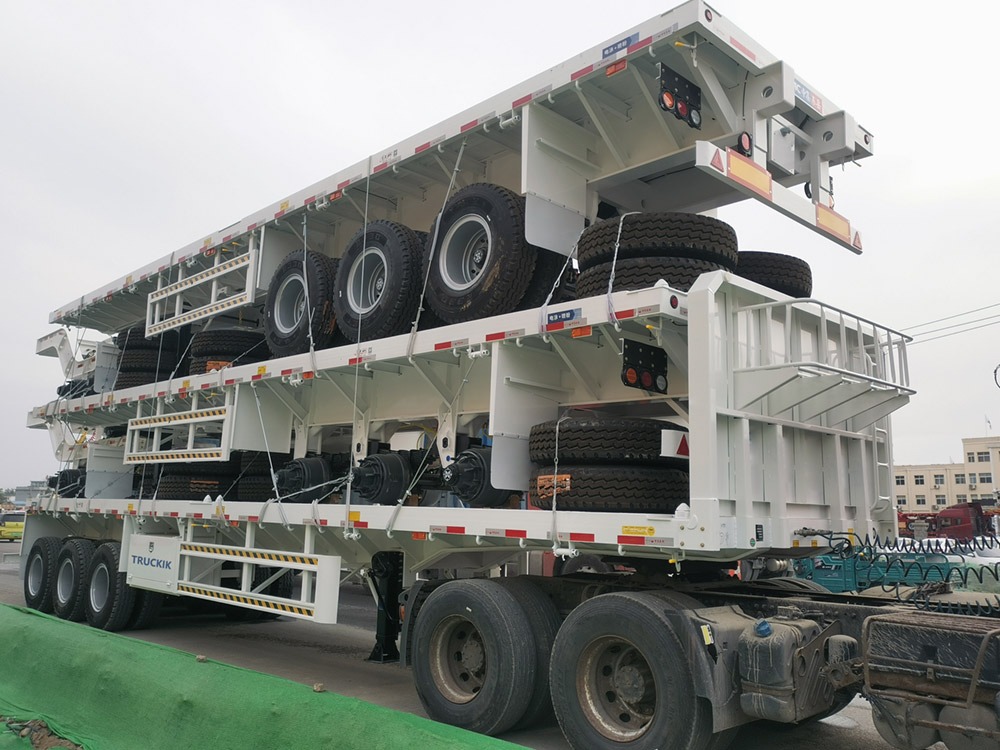

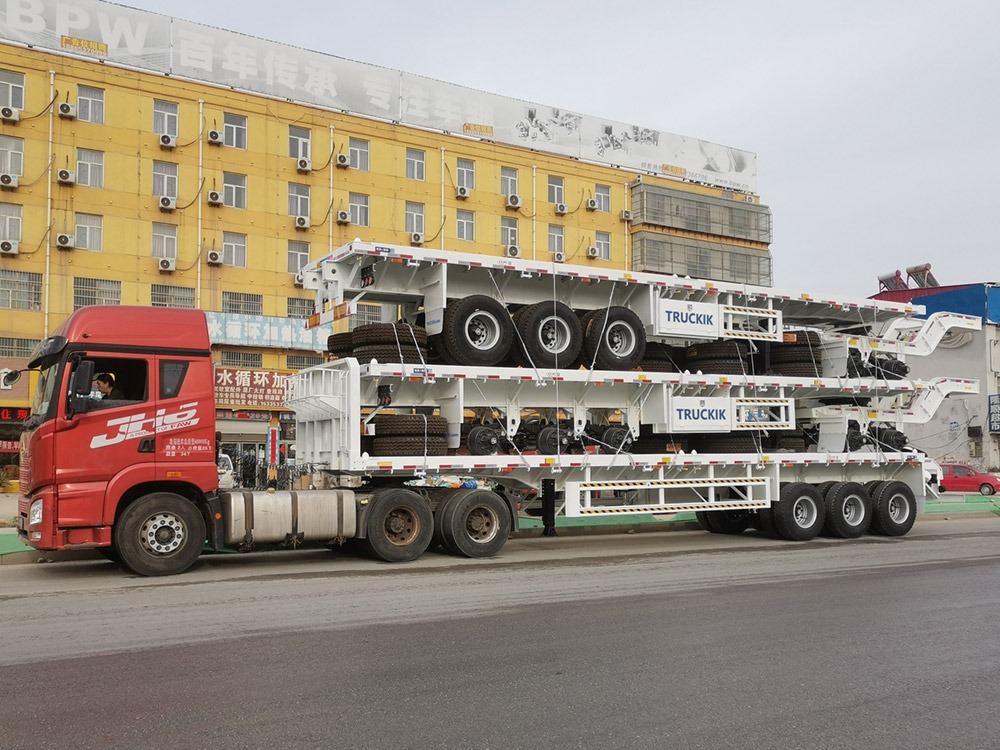

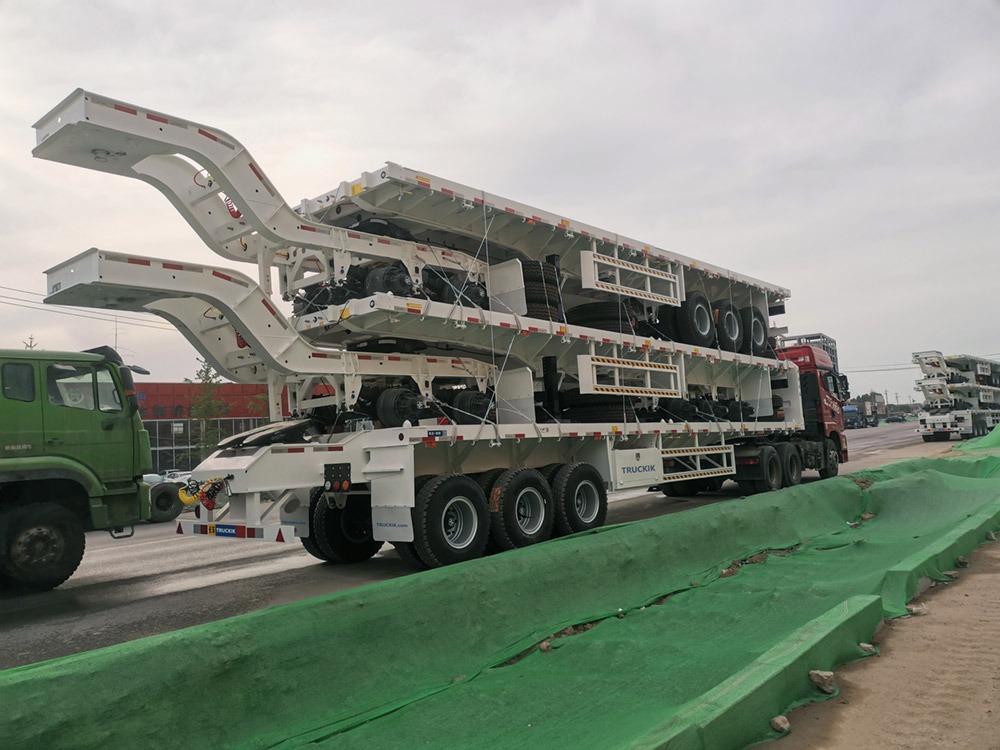

Double semi trailer super link flatbed for Mongolia truckik 2022

Length: 13,920mm Width: 2,550mm Height: Approx. 3,170mm

Kingpin location: 1000mm from the front face of the front bolster

Axle spacer: 4,410mm+1,310mm+1,310mm

Landing gear location: 2,725mm behind the kingpin location

(The above dimension will be adjusted according to the tractor specification)

Payload: 29,400kg

Tare weight: Approx. 10,600kg

G.V.W.R: Approx. 40,000kg

Main beam: Main beam height: 500mm.

Material: High tensile steel Q345 Automatic submerged arc welding.

Beam Spec: Height 500mm; Top plate 14mm; Bottom plate 16mm; Middle plate 6mm.

Container locks: 8 sets of standard container locks

Deck floor: 3mm steel floor.

Welding standard: All welding is to be done by qualified welders per applicable national standard.

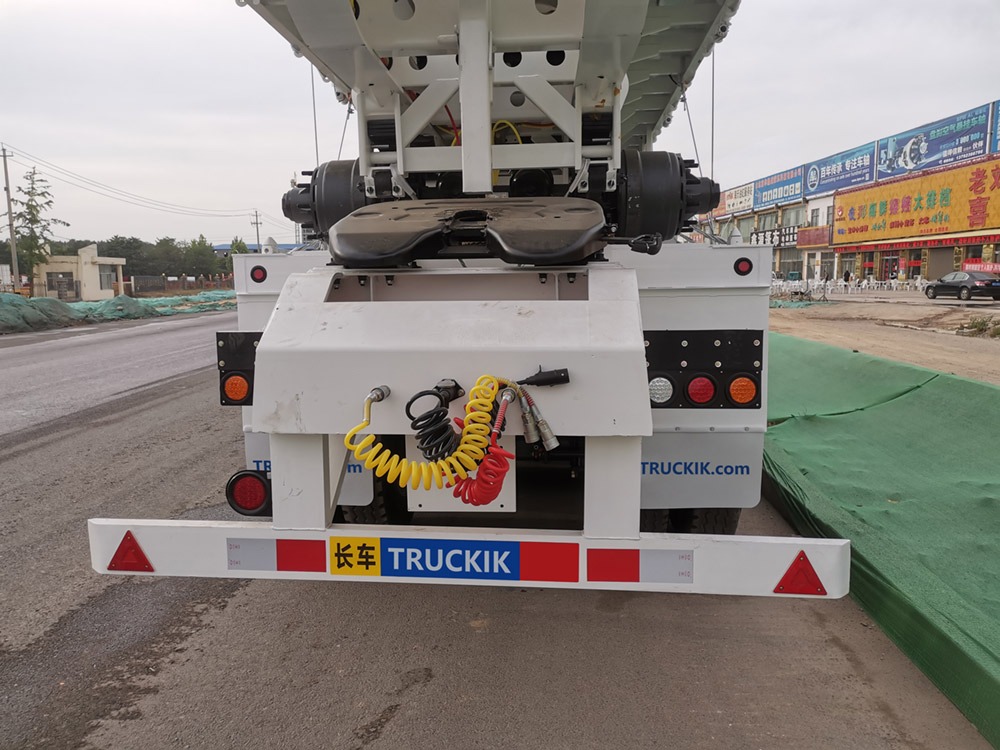

Kingpin: JOST 3.5” kingpin changeable.

Painting: Shot blast at SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um.

Suspension: Mechanical suspension, leaf spring, heavy duty China

Axle: square beam axle, 13 ton*3pcs capacity, China.

Brake system: Dual line pneumatic brake, With ABS system.

Brake chamber: Target type 30/30 spring brake system on 2 axles, China.

Air tank: 40L, 2 pcs, China.

Emergency relay valve: WABCO; China.

Rim: 8.5-20 steel disc wheel, 10 holes ISO, 12 pcs. China

Tire: Triangle brand, 12.00R20, 12 pcs. China

Landing gear: JOST landing gear.

Voltage: 24 Volt.

Receptacle: 7-way socket.

Front marker Lamp: LED lamp. Including Front marker Lamp; Side marker lamp; Turn signal lamp; Rear lamp.

Reflector: Triangle reflector, red color.

Wiring: Electric cable protected by PVC conduit on main frame.

Mud guard: Steel mud guard.

Spare wheel carriers: 1 pc.

Tool box: 1 pc.
