Tipper semi trailer

FOB Price:


Price range: $18,800-$29,800 due to different Specs.

I want a .


Length: 8,760mm Width: 2,500mm Height: Approx. 3,440mm

Kingpin location: 1000mm from the front face of the front bolster

Axle spacer: 4,410mm+1,310mm+1,310mm

Landing gear location: 2,725mm behind the kingpin location

(The above dimension will be adjusted according to the tractor specification)

Payload: 32,000kg

Tare weight: Approx. 8,800kg

G.V.W.R: Approx. 40,000kg

Main beam: Main beam height: 500mm.

Material: High tensile steel Q345 Automatic submerged arc welding.

Beam Spec: Height 500mm; Top plate 14mm; Bottom plate 16mm; Middle plate 6mm.

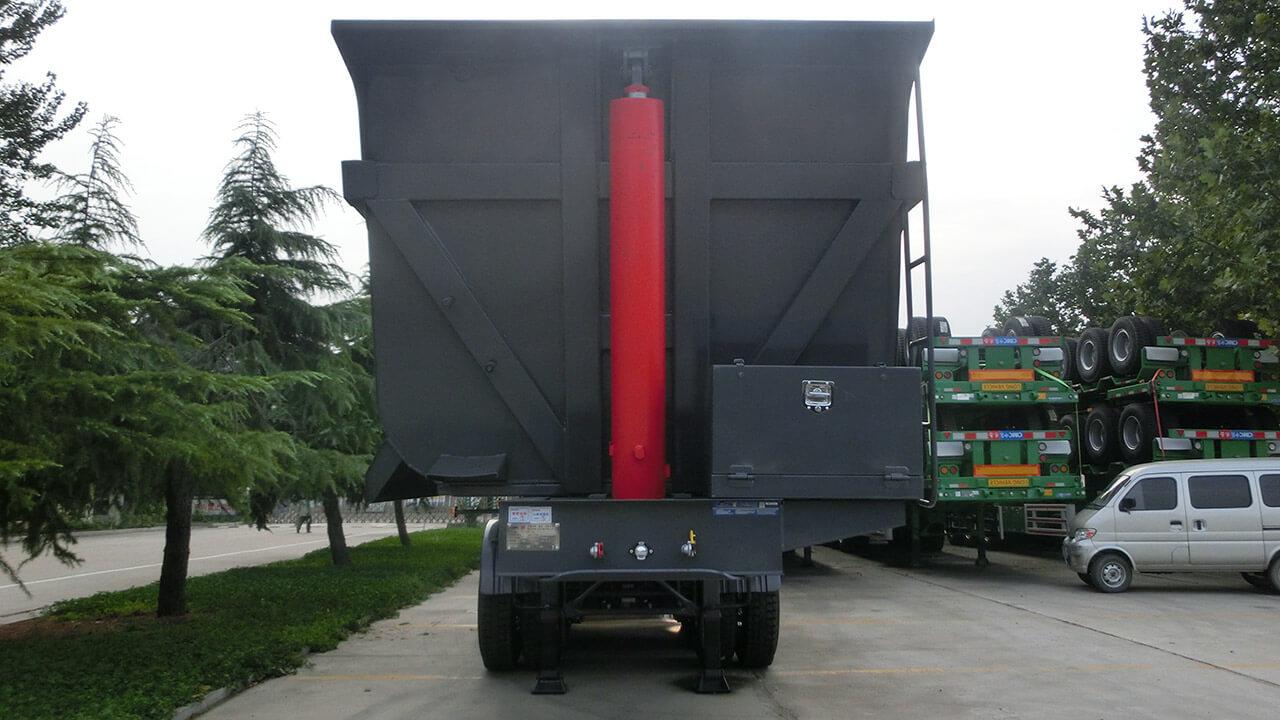

Hydraulic: Full set of HYVA 214*9030 hydraulic system

Deck floor: 6mm steel floor.

Welding standard: All welding is to be done by qualified welders per applicable national standard.

Kingpin: JOST 2” kingpin changeable.

Painting: Shot blast at SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um.

Suspension: Mechanical suspension, leaf spring, heavy duty China

Axle: square beam axle, 13 ton*3pcs capacity, China.

Brake system: Dual line pneumatic brake, With ABS system.

Brake chamber: Target type 30/30 spring brake system on 2 axles, China.

Air tank: 40L, 2 pcs, China.

Emergency relay valve: WABCO; China.

Rim: 8.5-20 steel disc wheel, 10 holes ISO, 12 pcs. China

Tire: Triangle brand, 12.00R20, 12 pcs. China

Landing gear: JOST landing gear.

Voltage: 24 Volt.

Receptacle: 7-way socket.

Front marker Lamp: LED lamp. Including Front marker Lamp; Side marker lamp; Turn signal lamp; Rear lamp.

Reflector: Triangle reflector, red color.

Wiring: Electric cable protected by PVC conduit on main frame.

Mud guard: Steel mud guard.

Spare wheel carriers: 1 pc.

Tool box: 1 pc.

Why choose Truckik?


To lower the price, we manage to reduce costs, especially the marketing costs, but never reduce the quality.


We manage to provide the most cost-effective truck trailers, reliable quality will earn more profits for their owner.


With advanced manufacturing equipment and skilled workers, we can provide high quality truck trailers continuously.


Our trailers are highly customizable, we will offer professional design drawing to confirm order.
