CNG trailers for sale compressed natural gas tube trailer truckik

CNG trailers for sale best industrial compressed natural gas tank trailers

Name: CNG trailers for sale best industrial compressed natural gas tank trailers 2025 - Truckik
SKU: CNGSKW9401GGY
Price: 78500.00 USD
Availability: InStock

FOB Price:

$78,500.00

Price range: $65,000-$88,500 due to different Specs.

I want a .

Description

Advantages of CNG trailers :

Seamless structure provides the most reliable guarantee for operation safety.
The container has a large volume capacity which can reduce transportation turnover and improve working efficiency.
Large size structure allows for a reduction in the number of valves and pipes, in order to reduce the risk of leakage.

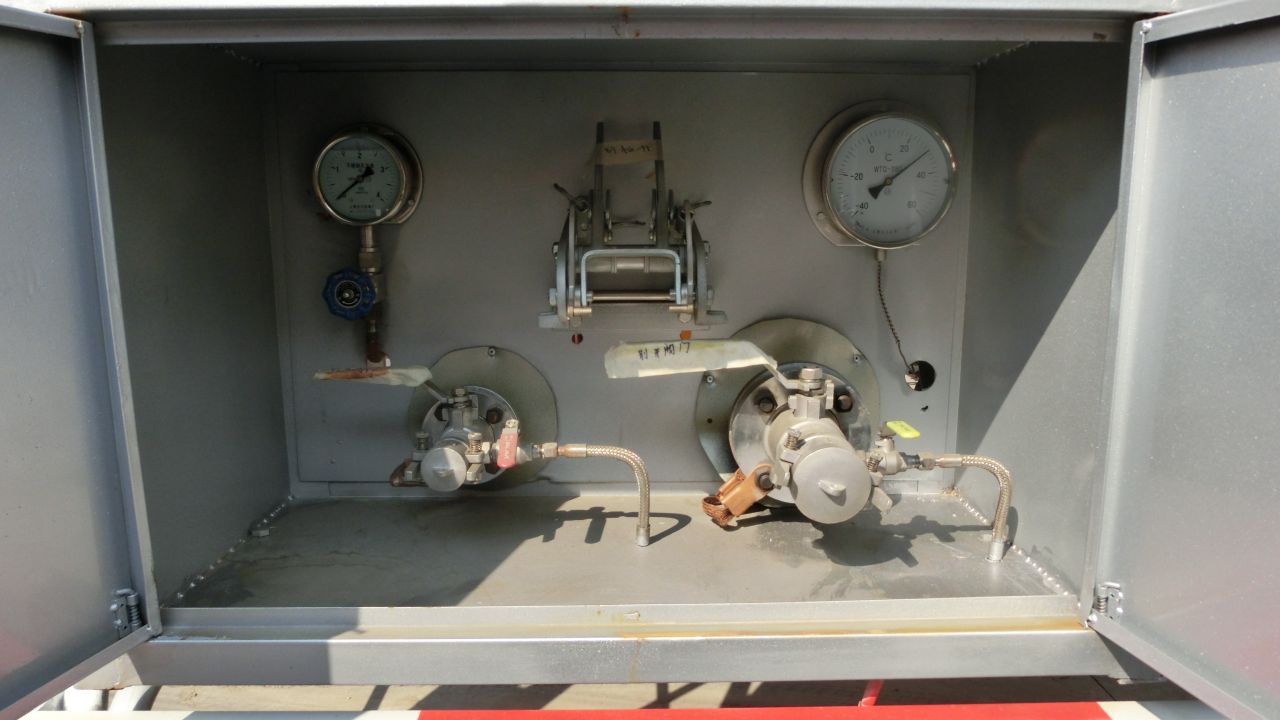

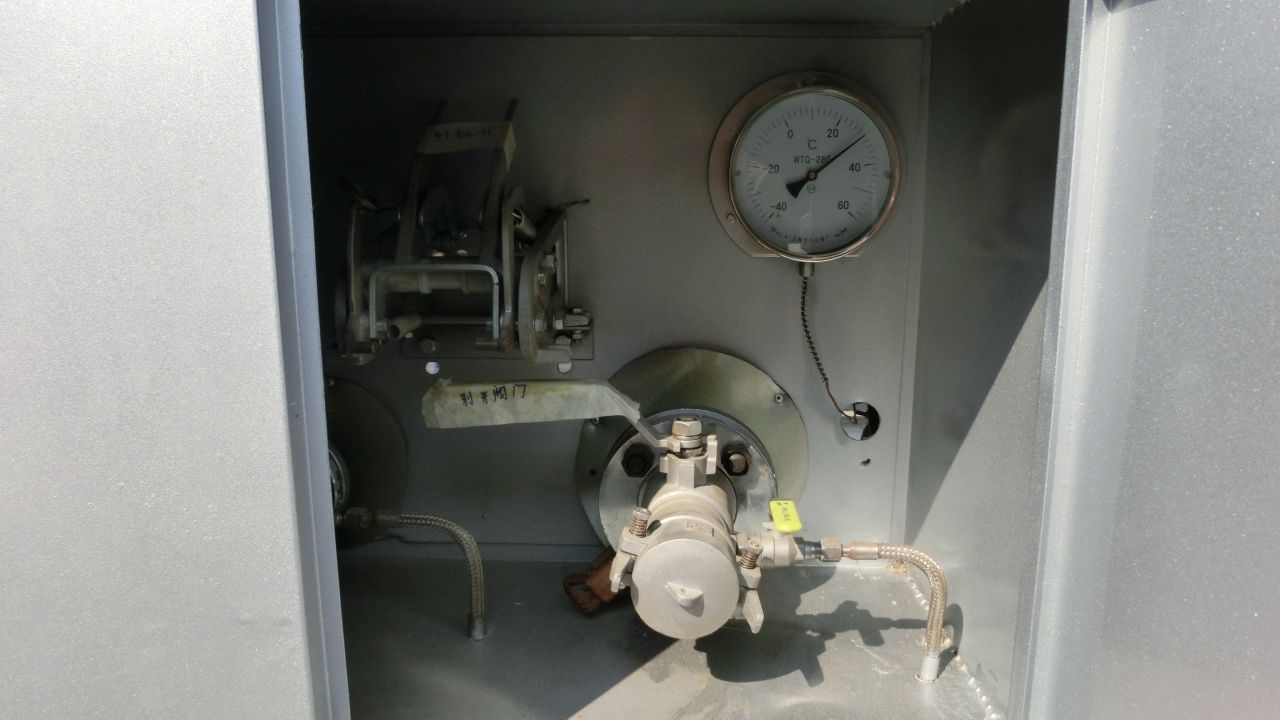

The CNG tube transport truck tank semi-trailer has a gas supply device which can be directly provided with natural gas fuel for energy saving.

Application:

compressed natural gas tank trailer
industrial gas tank trailers
natural gas trailers
CNG transport trailers

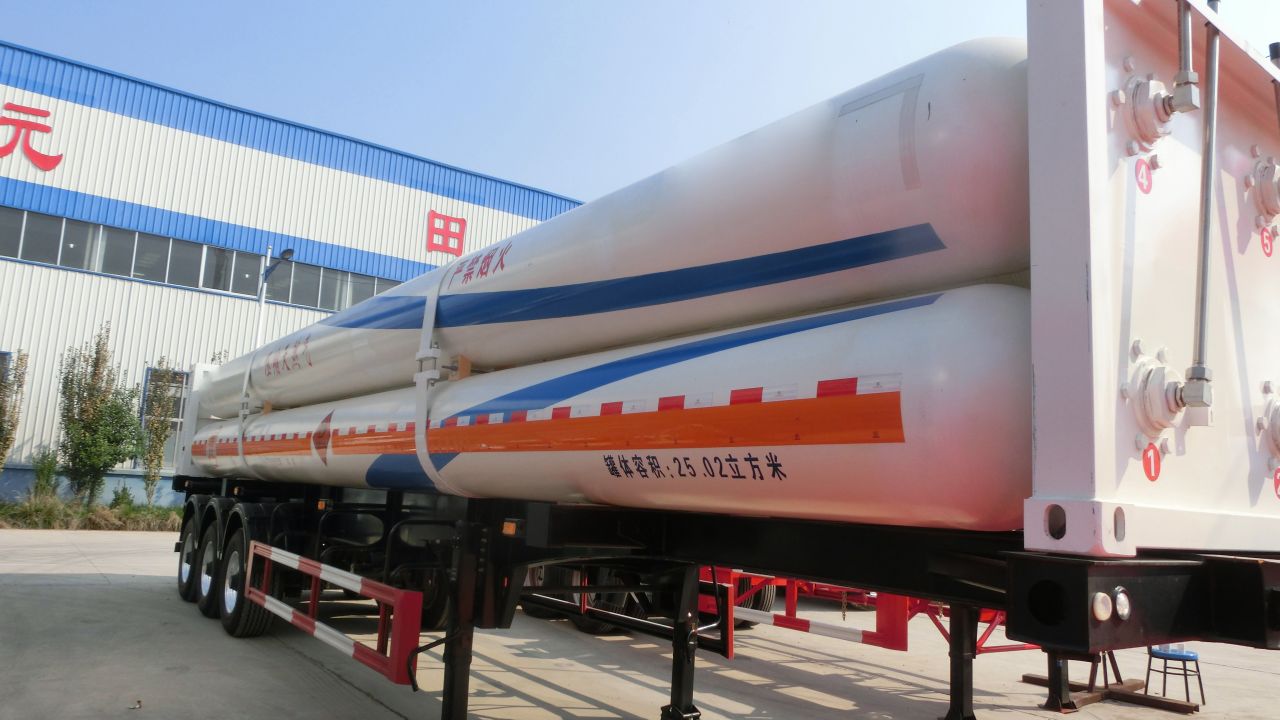

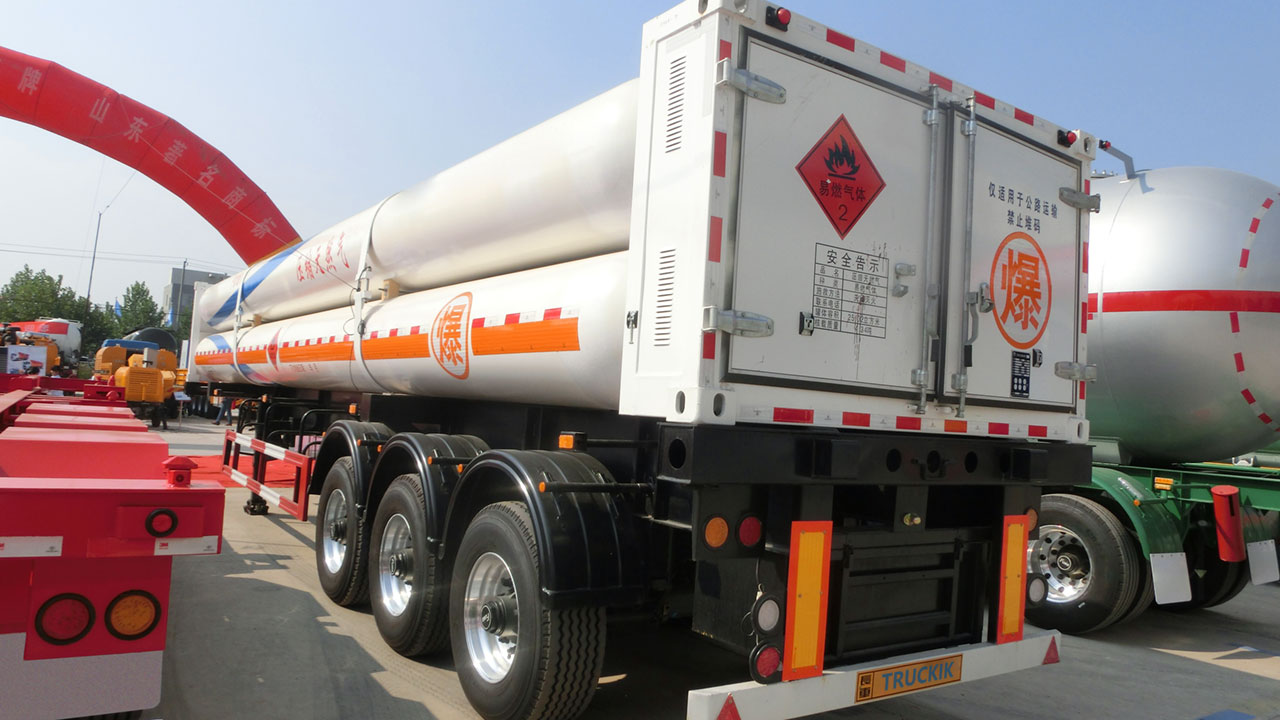

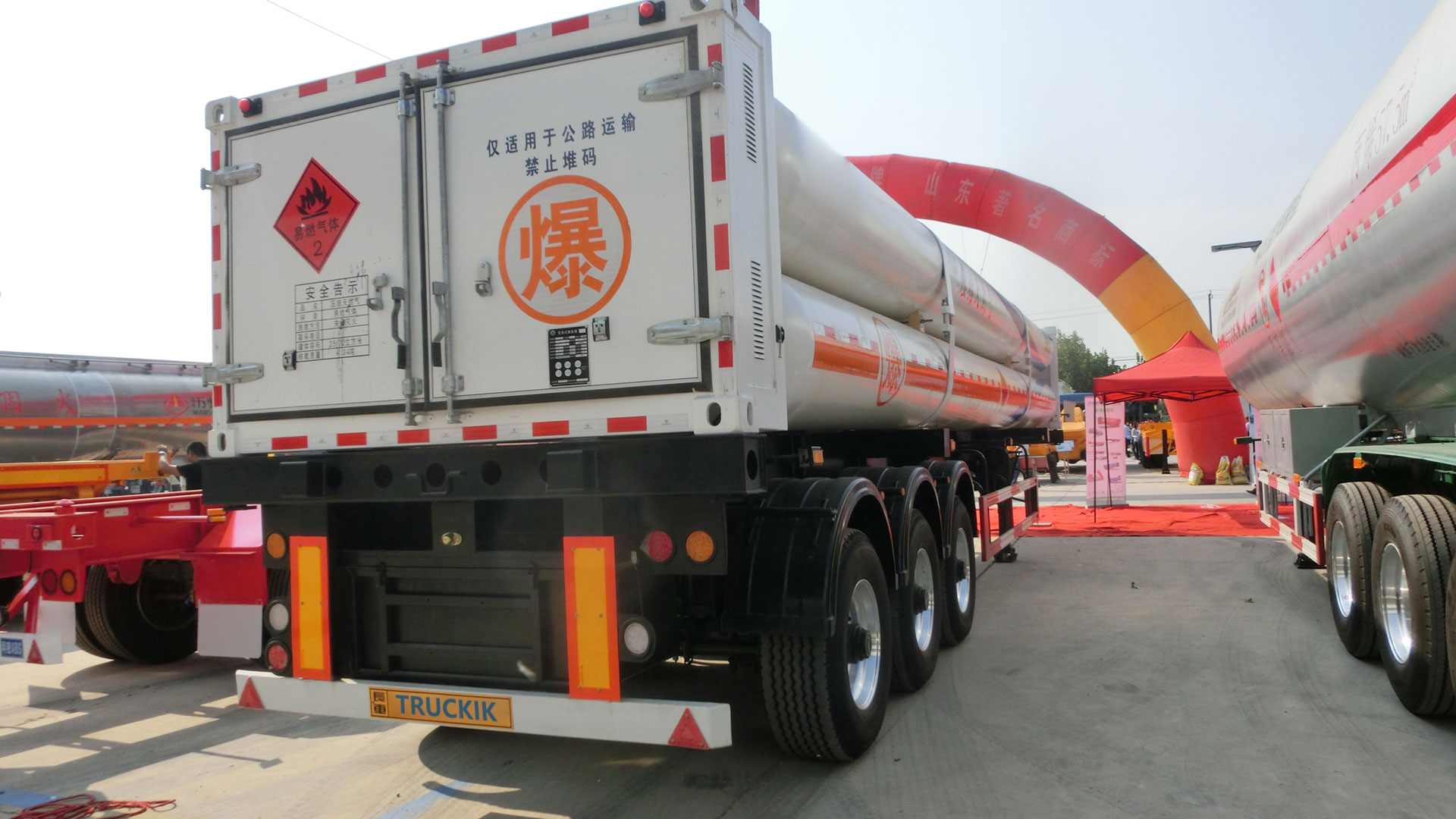

8 TUBES CNG TRAILER

Transportation medium: Compressed Natural Gas tube/bottle pressure vessels.

Each tube has: 11582mm length, 559mm diameter. Quality Filling: 5400N/m3

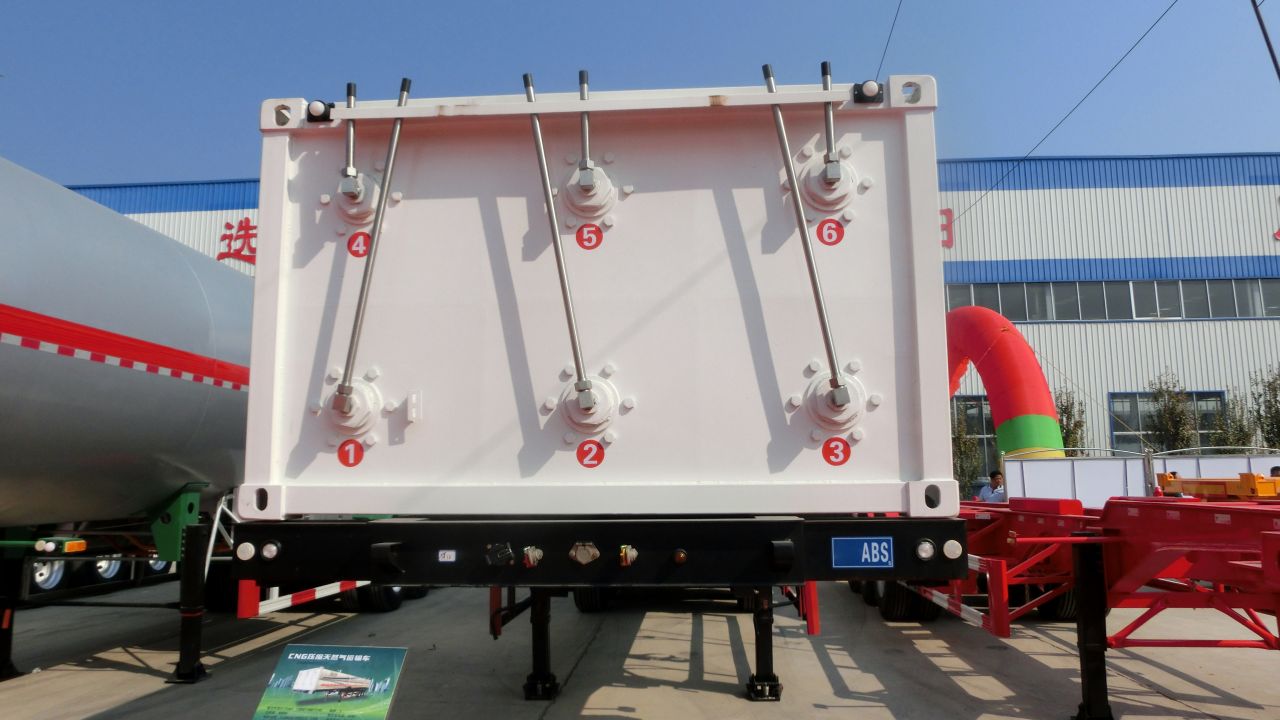

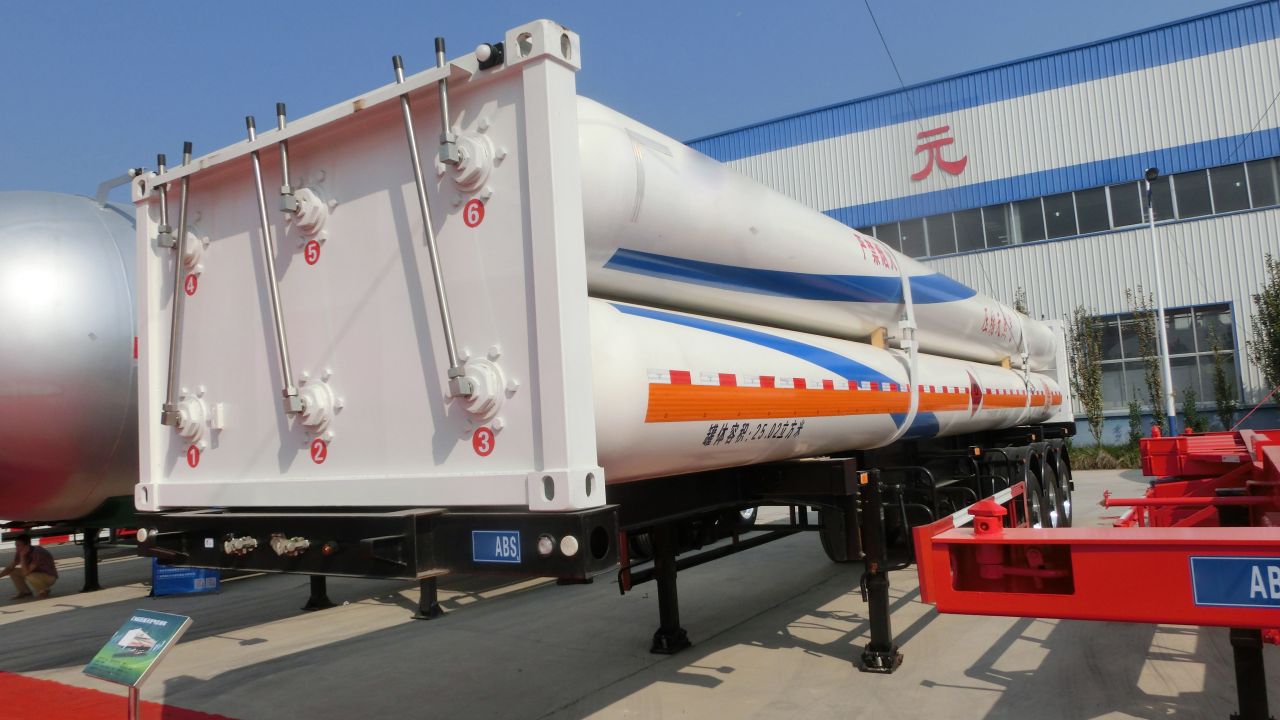

6 TUBES CNG TRAILER

Transportation medium: Compressed Natural Gas tube/bottle pressure vessels.

Each tube has: 12190mm length, 711mm diameter. Quality Filling: 6300N/m3

Tube Bundle Container		Cylinder
Item		Item
Tare weight	30740Kgs (Include chassis)	Working pressure	25MPa
Filling quality	4410Kg	Working temperature	-50~65 d C
Total weight	35150Kgs (Include chassis)	Main material	30CrMoLX
Major risk category	2.1	Cylinder QTY	6 or 8
UN code	1049	Total volume	19.6M3
Filling medium	CNG	Pressure for water pressure test	37.5MPa
Gas tightness test pressure	25Mpa	Dimension(mm)	N x11570
Pipeline water pressure test pressure	37.5MPa	Design temperature	65 d C
Filling amount	6174Nm3	Medium property	Explosive
Overall dimension (mm)	1245024803460 (8 tubes) 1300024803140 (6 tubes)	Bursting discs	Burst pressure 37.5MPa
Transporting	Highway combined transport		Bursting disc device discharge aperture
Design service life	Fifteen years		≥20

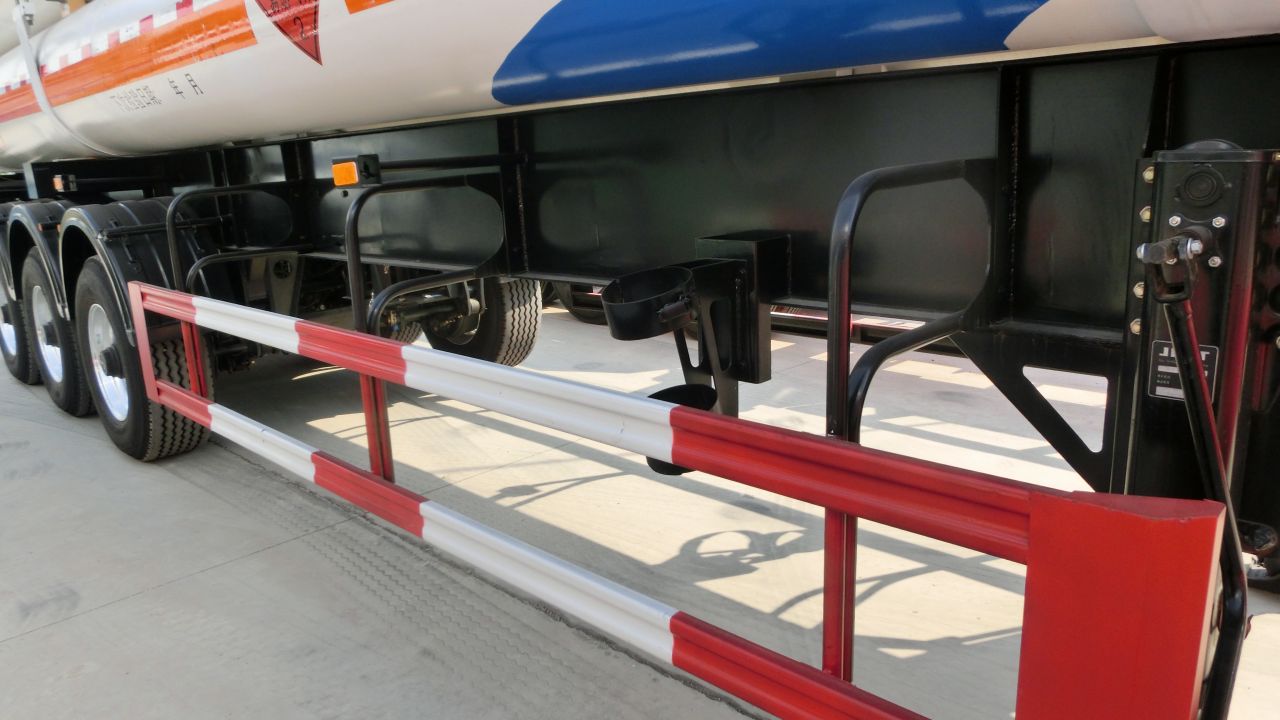

Chassis:
Axle	3 Axles, 13 Tons FUWA brand
Tire	13 pcs, include one spare tire
