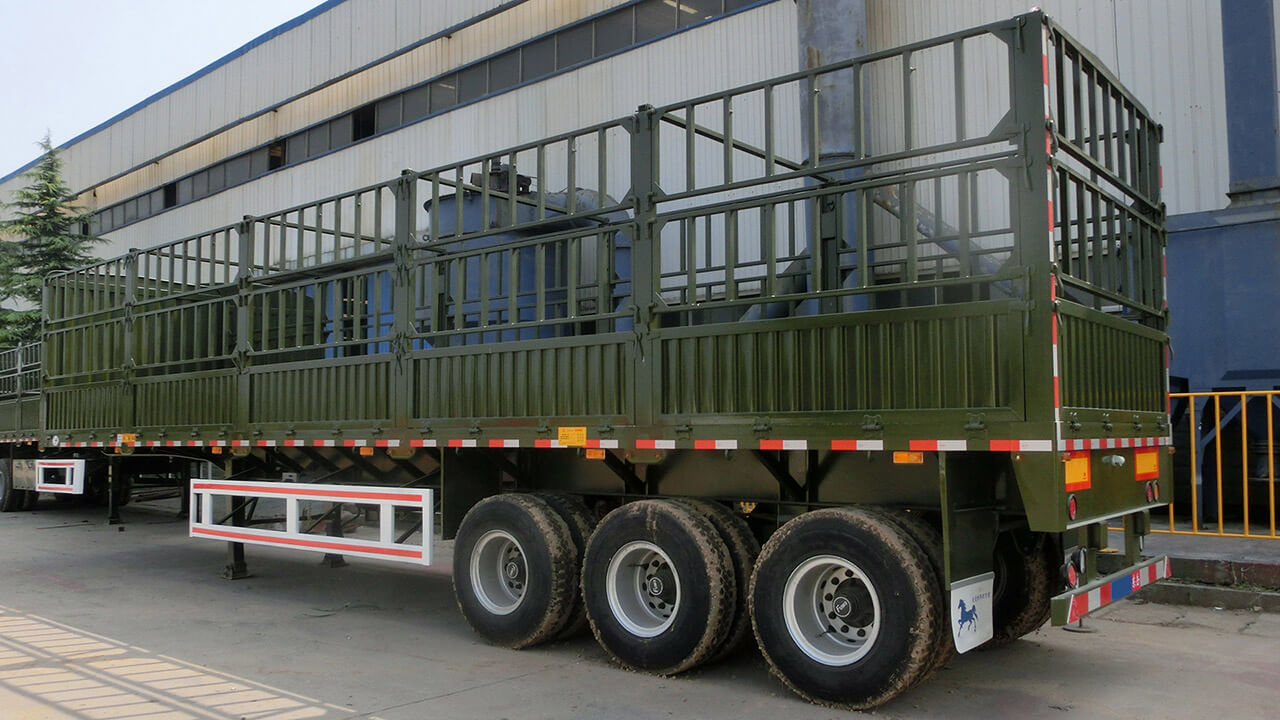

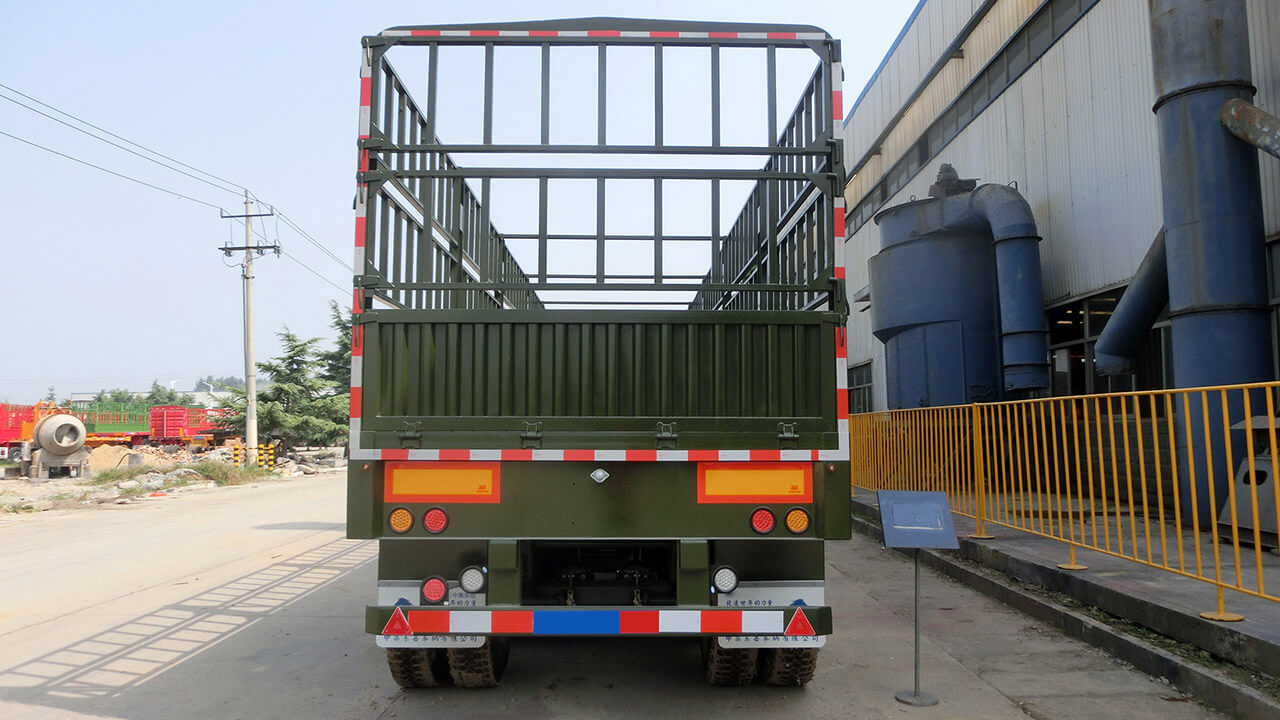

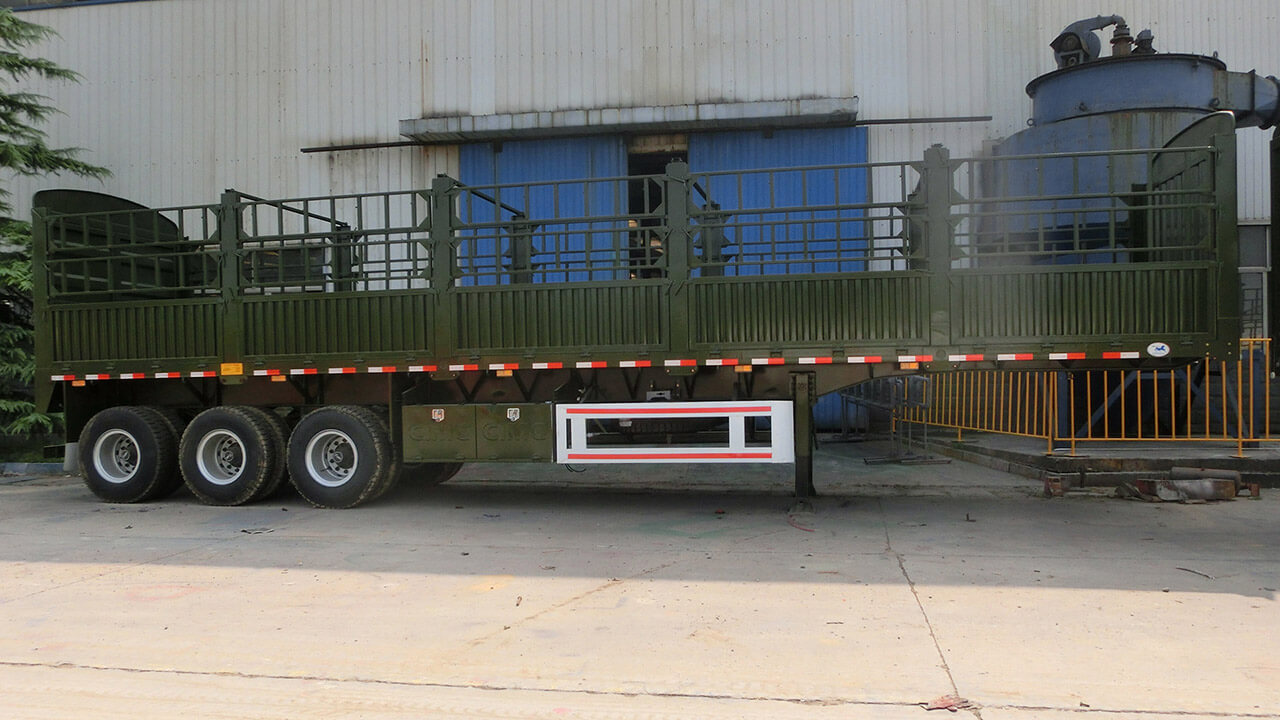

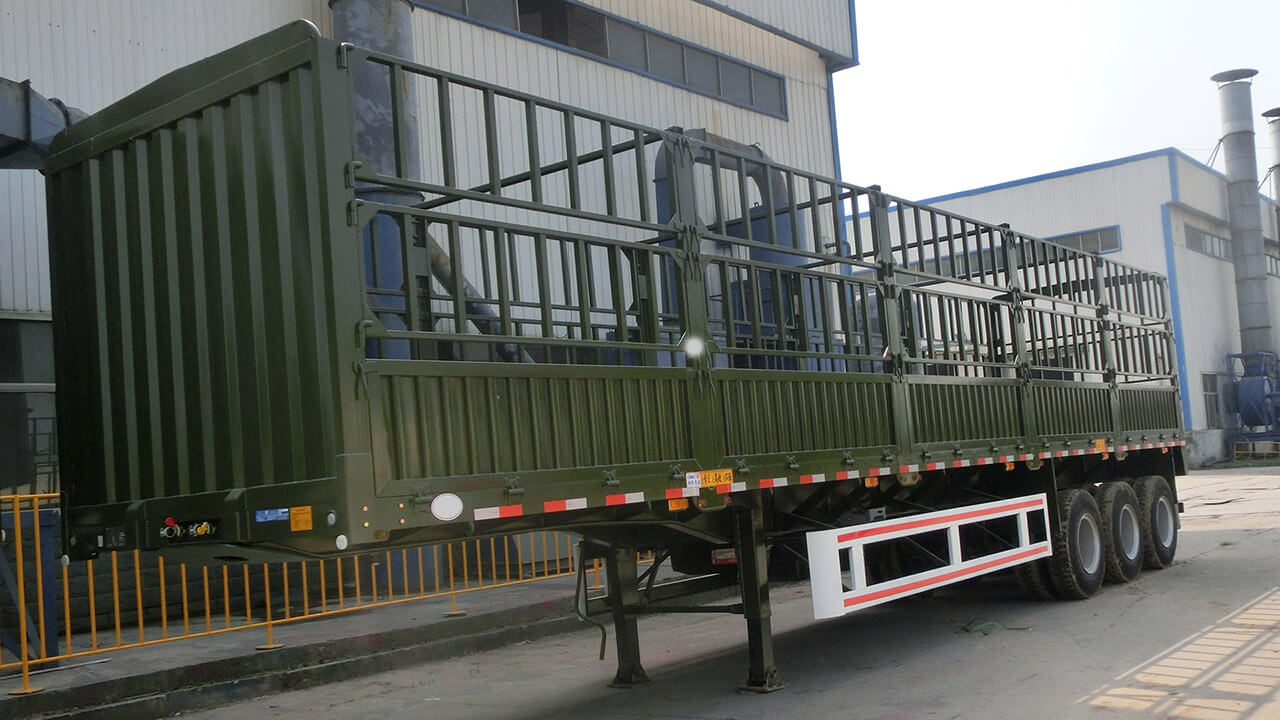

Cargo semi trailer for sale

Length: 12,500mm Width: 2,500mm Height: 1,500mm

Kingpin location: 1,100mm from the front face of the front bolster

Axle spacer: 6,820mm+1,310mm+1,310mm

Landing gear location 2,650mm behind the kingpin location

(The above dimension will be adjusted according to the tractor specification.)

Payload: 40,000kg

Tare weight: Approx. 8,000kg

G.V.W.R.: Approx. 48,000kg

Main beam: Material Q345B. Fabricated “H” beam height 500mm, Top flange thickness 12mm, Middle web thickness 6mm, Bottom flange thickness 14mm

Side beam: 14# channel steel

Platform: 2.5mm thick chequer plate with supporting channel

Side wall: Corrugated plate, height 600mm, with fence height 1200mm

Cross beam: 80*40mm square tube

Kingpin: JOST 2” SAE Kingpin, bolted in type

Twist lock: Without (Can be optional)

Welding standard: All welding is to be done by qualified welder per applicable national standard

Painting: Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um

Suspension: mechanical suspension, leaf spring 13mmx90mm, China

Axle: FUWA 150×150 square beam axle, 3pcs*13-ton capacity, China

Brake system: Dual line pneumatic brake, SAE hose and connector

Brake chamber: 4 units T30/30 spring break chambers, 2 units T30 brake chambers

Air tank: 40L, 2 pcs, China

Emergency relay valve: Wabco relay valve

Tire: Triangle brand, 12R22.5, 12 pcs. China

Rim: 9.00*22.5 steel disc wheel, 10 holes ISO, 12 pcs. China

Landing gear: JOST C200 two speed telescopic manual landing gear

Voltage: 24 Volt

Receptacle: 7-way socket SAE standard, China

Front marker lamp: White

Side marker lamp: White & Red

Rear lamp: Red

Turn signal lamp: Amber

Reflector: Per customer requirement

Wiring: Electric cable protected by PVC conduit on main frame

Mud guard: Steel mud guard

Spare wheel carriers: 2 pcs

Tool box: 1 pc
