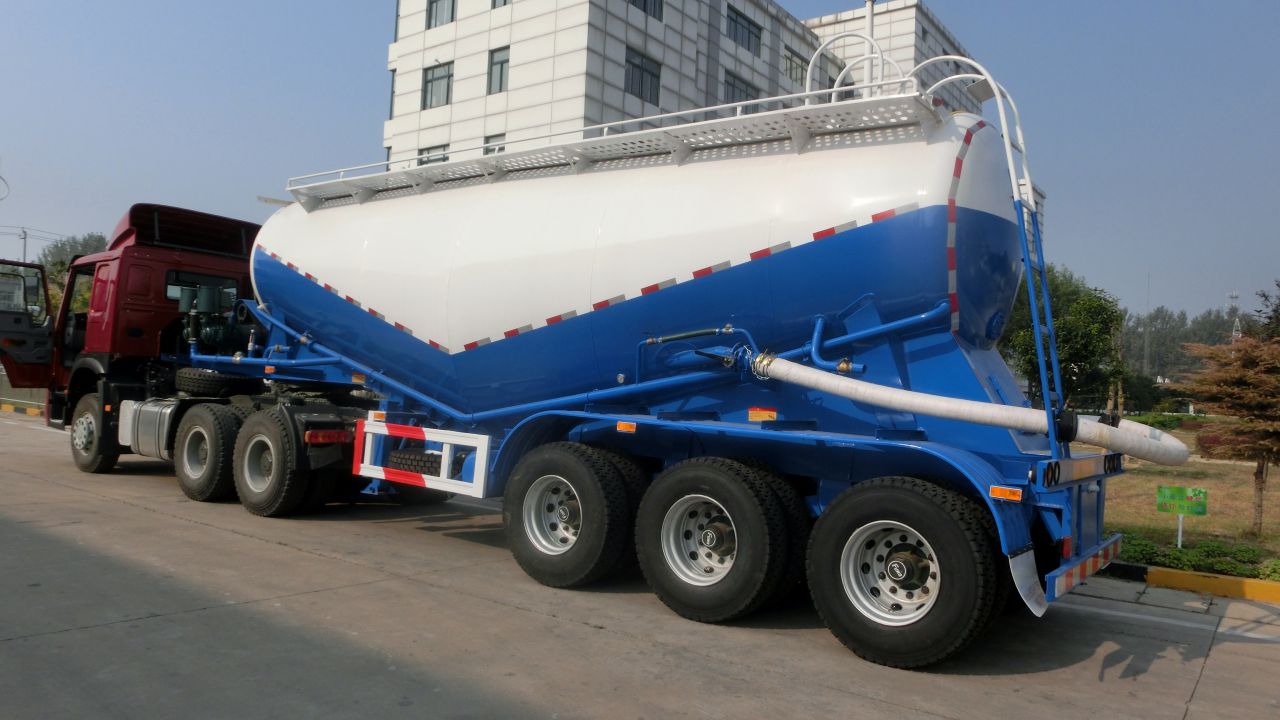

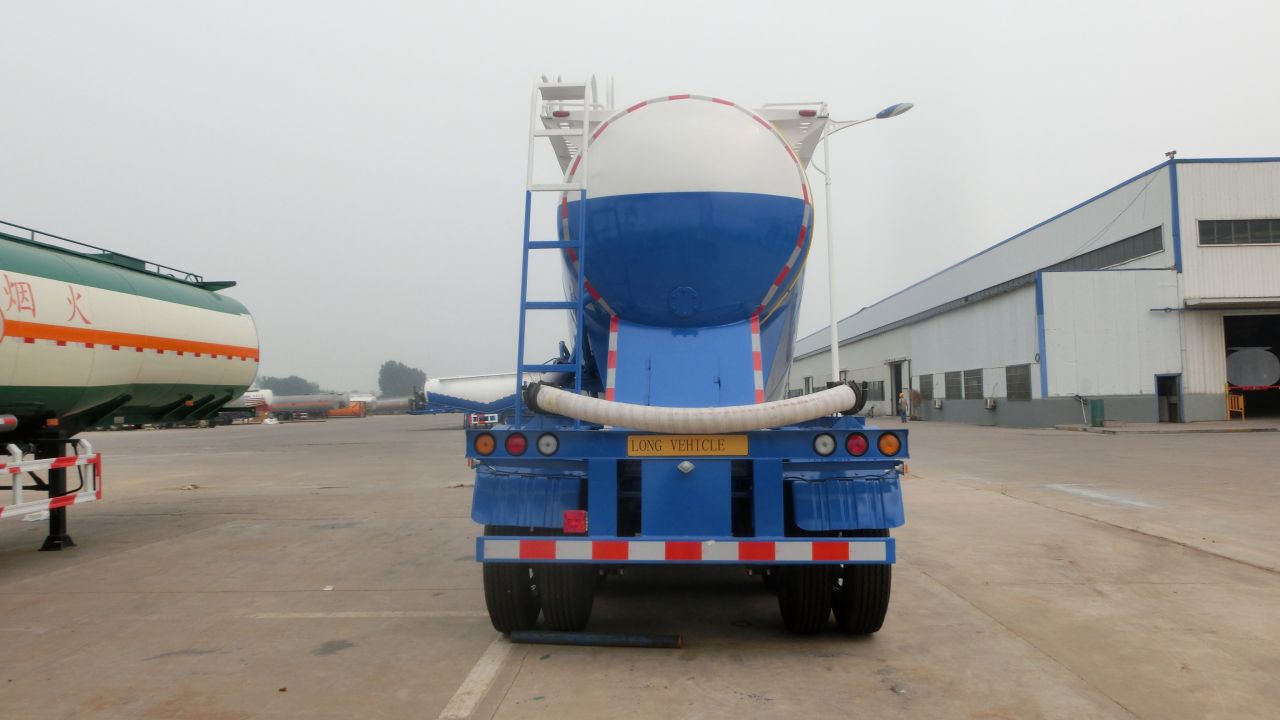

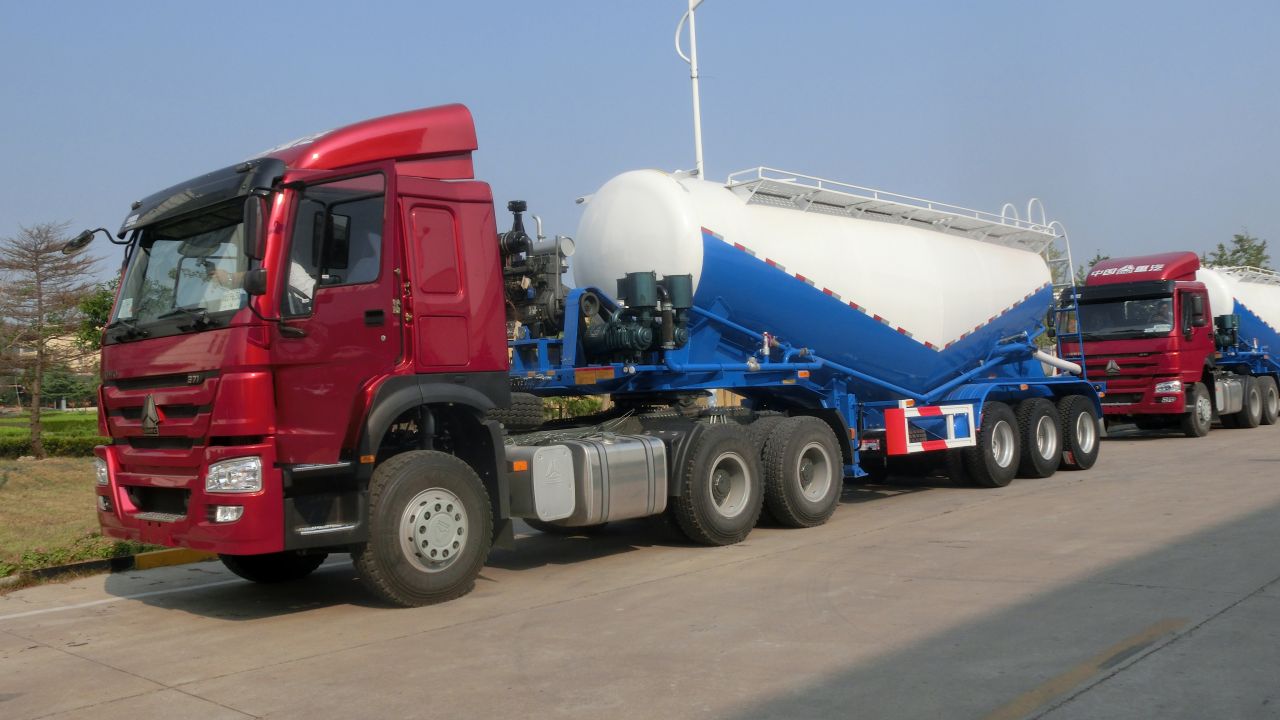

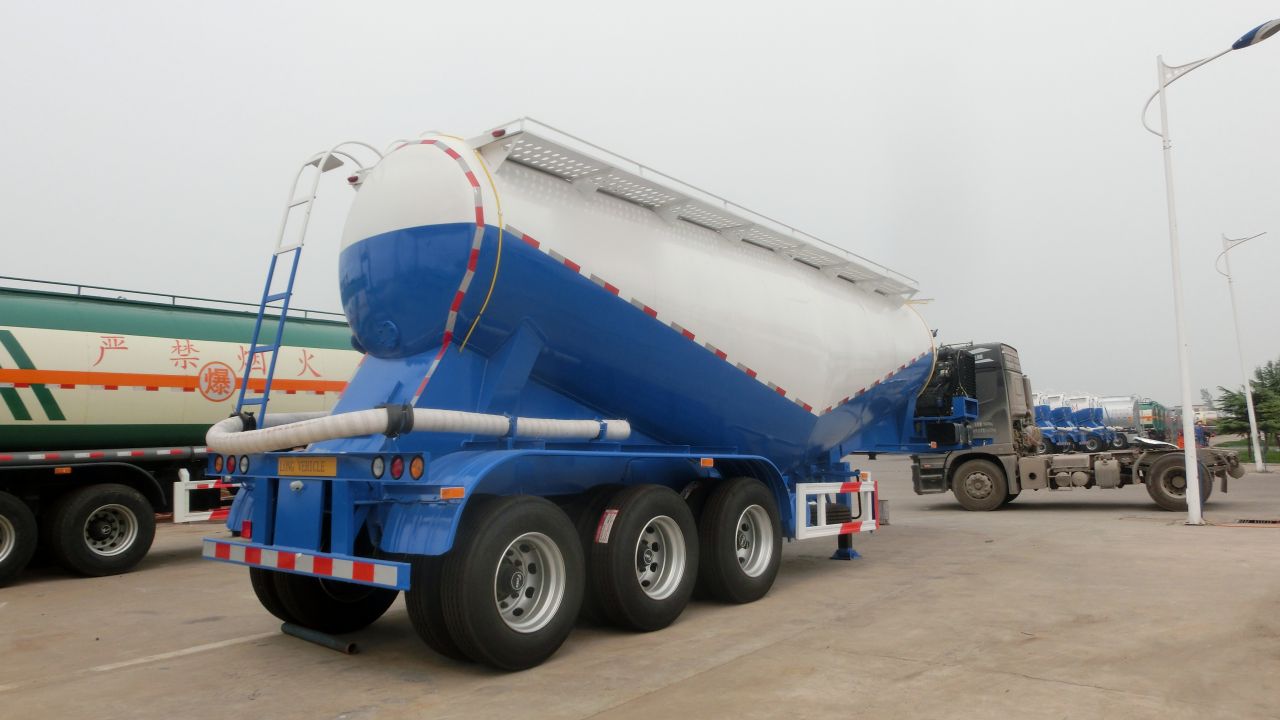

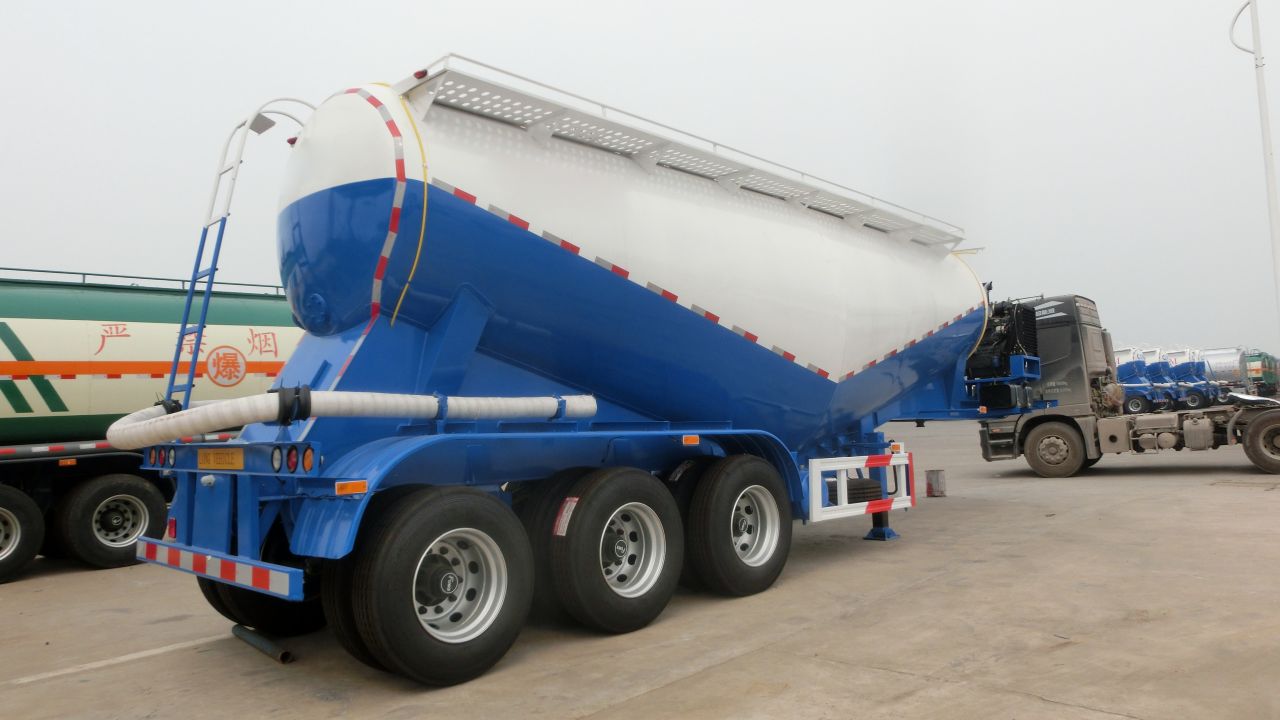

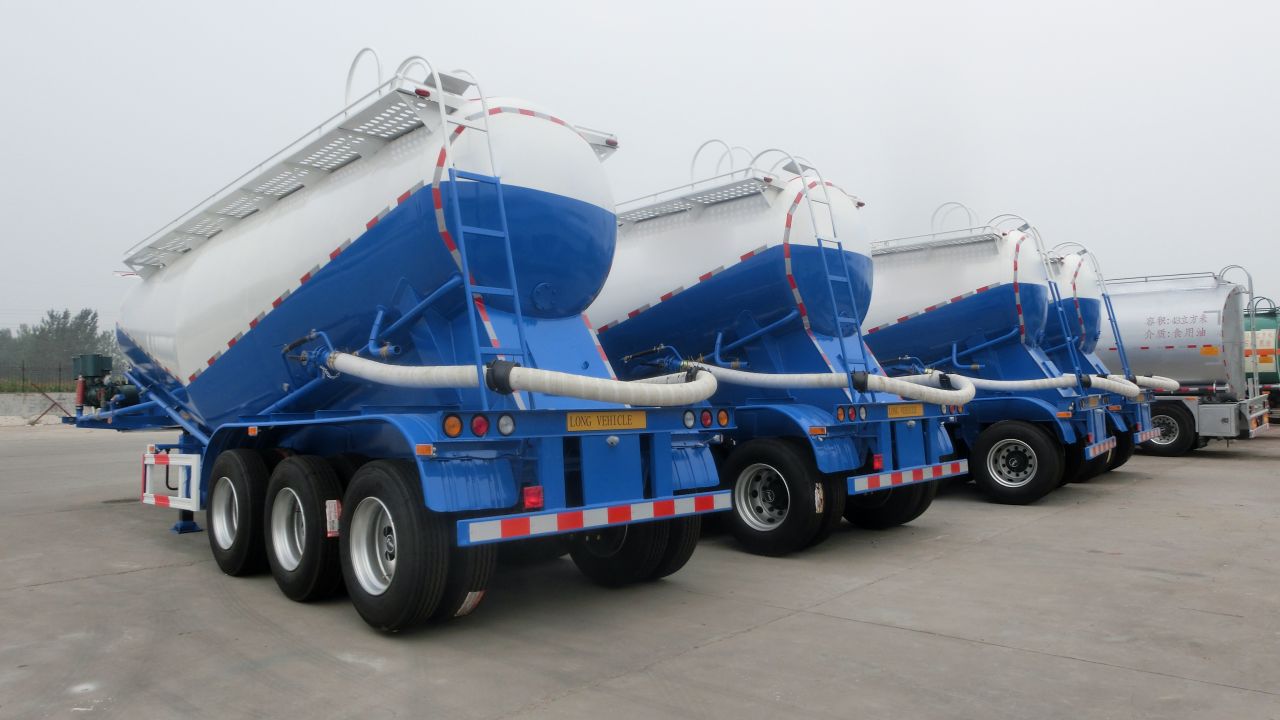

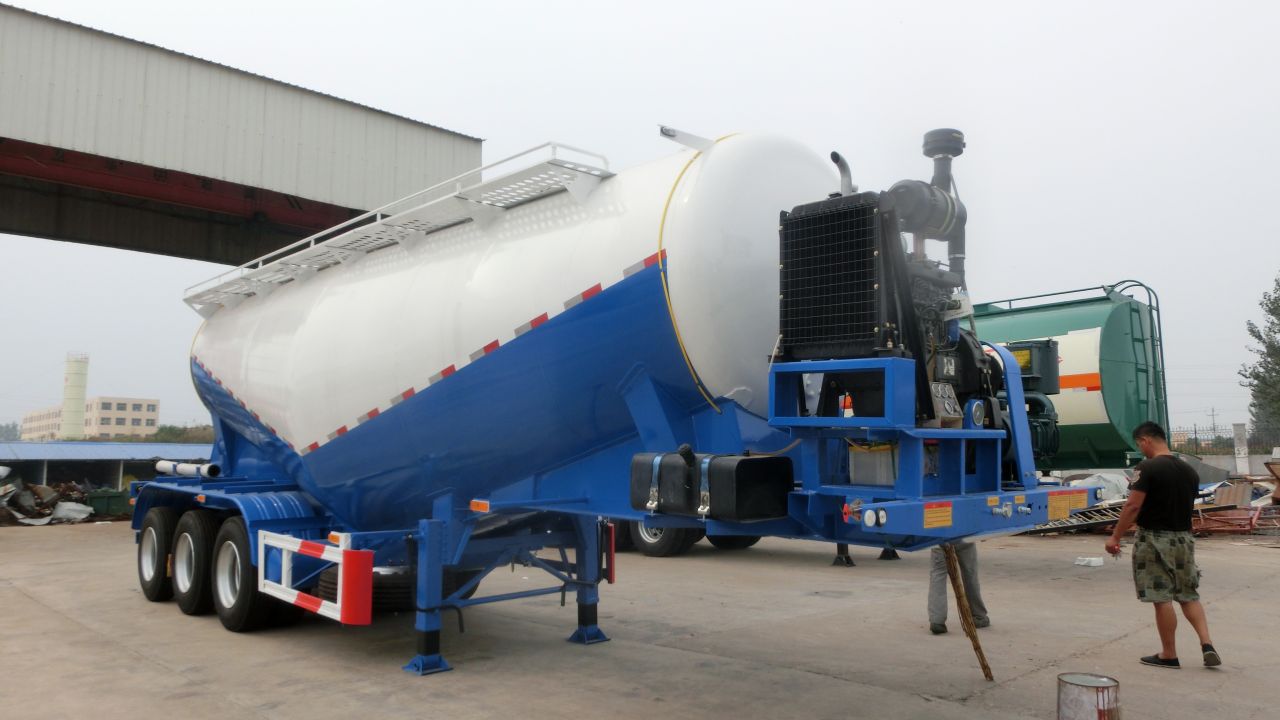

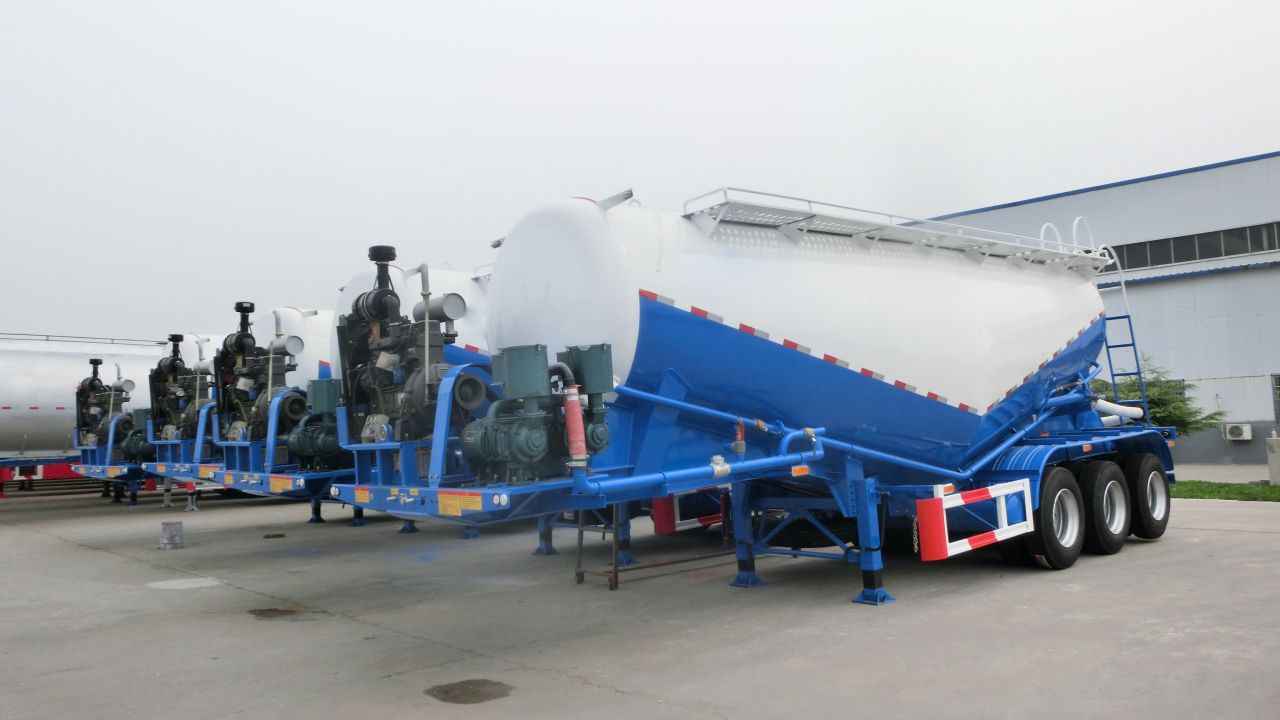

Bulk cement silo tank semi trailer for sale truckik 2022

FOB Price:


Price range: $16,500-$25,500 due to different Specs.

I want a .


  • Max Safety: security rail to protect operators, anti-explosion manhole cover optional to assure the safety;
  • Efficiency: powerful unloading system can achieve unloading up to 1400kgs per minute;
  • Light design: high tensile steel material and advanced design to achieve lower weight with high carrying capacity;
  • Surface treatment: zinc-rich-primer and polyurethane topcoat as customers’ choices;
  • Options: 25 m3– 60 m3 capacity available, single or double silo, Diesel engine or electronic motor power.

Length: 10,800mm Width: 2,500mm Height: Approx. 3,850mm

Kingpin location: 1350mm from the front face of the front bolster

Axle spacer: 5,900mm+1,310mm+1,310mm

Landing gear location: 2,523mm behind the kingpin location

(The above dimension will be adjusted according to the tractor specification)

Payload: 31,200kg

Tare weight: Approx. 8,800kg

G.V.W.R: Approx. 40,000kg

Type: V-shape tank

Volume: 40,000L

Engine: Weichai (Huafeng):4102P, China

Air compressor: BOHAI:12m³, double cylinder, China

Dished ends: Q235, thickness=4mm

Shell: Q235, thickness=3mm

Discharge valve: 4” butterfly valve

Kingpin: JOST 2″ kingpin

Discharge pipe & hose: 4” pipe & hose with quick coupling

Manhole: 2 standard manholes, 500 mm dimeter

Working pressure: 0.2Mpa

Test pressure: 0.3Mpa

Welding standard: All welding is to be done by qualified welder per applicable national standard.

Painting: Shot blast at SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um.

Suspension: Mechanical suspension, leaf spring, heavy duty China

Axle: square beam axle, 13 ton*3pcs capacity, China.

Brake system: Dual line pneumatic brake, With ABS system.

Brake chamber: Target type 30/30 spring brake system on 2 axles, China.

Air tank: 40L, 2 pcs, China.

Emergency relay valve: WABCO; China.

Rim: 8.5-20 steel disc wheel, 10 holes ISO, 12 pcs. China

Tire: Triangle brand, 12.00R20, 12 pcs. China

Landing gear: JOST landing gear.

Voltage: 24 Volt.

Receptacle: 7-way socket.

Front marker Lamp: LED lamp. Including Front marker Lamp; Side marker lamp; Turn signal lamp; Rear lamp.

Reflector: Triangle reflector, red color.

Wiring: Electric cable protected by PVC conduit on main frame.

Mud guard: Steel mud guard.

Spare wheel carriers: 1 pc.

Tool box: 1 pc.

Note: All the details not mentioned above should comply with Chinese regulations. If any component or structure changes, the price shall be modified accordingly.

Why choose Truckik?


To lower the price, we manage to reduce costs, especially the marketing costs, but never reduce the quality.


We manage to provide the most cost-effective truck trailers, reliable quality will earn more profits for their owner.


With advanced manufacturing equipment and skilled workers, we can provide high quality truck trailers continuously.


Our trailers are highly customizable, we will offer professional design drawing to confirm order.
