Heavy duty Lowboy semi trailer for sale truckik

Name: Heavy duty Lowboy semi trailer for sale truckik 2025 - Truckik
Price: 19800.00 USD
Availability: InStock

FOB Price:

$19,800.00

Price range: $16,800-$28,800 due to different Specs.

I want a .

Description

Designed for over size: low drop deck design for oversized heavy machine, such as excavator, road roller, bulldozer, etc;
Capable of rough road conditions: international standard heavy-duty chassis and running system applied to cope with rough road conditions;
Heavy duty design: high tensile steel material and advanced design to achieve lower weight with high carrying capacity;
Surface treatment: zinc-rich-primer and polyurethane topcoat per customers’ choices;
Options: other valuable features are of your participation, just tell us your idea and we will work out the right trailer for you.

Specification:

Length:14,000mm Width:3,300mm Height:1,150mm

Kingpin location:450mm from the front face of the front bolster

Axle spacer:8,310mm+1,310mm+1,310mm

Landing gear location2,545mm behind the kingpin location

(The above dimension will be adjusted according to the tractor specification.)

Payload: 48,500kg

Tare weight: Approx. 11,500kg

G.V.W.: Approx. 60,000kg

Frame & Structure:

Main beam: Material Q345B. Fabricated “H” beam height 500mm, Top flange thickness 20mm, Middle web thickness 12mm, Bottom flange thickness 25mm

Side beam: 25# channel steel

Platform: 4mm thick chequer plate with supporting channel

Cross beam: 14# channel steel

Kingpin: JOST 2” Kingpin changeable

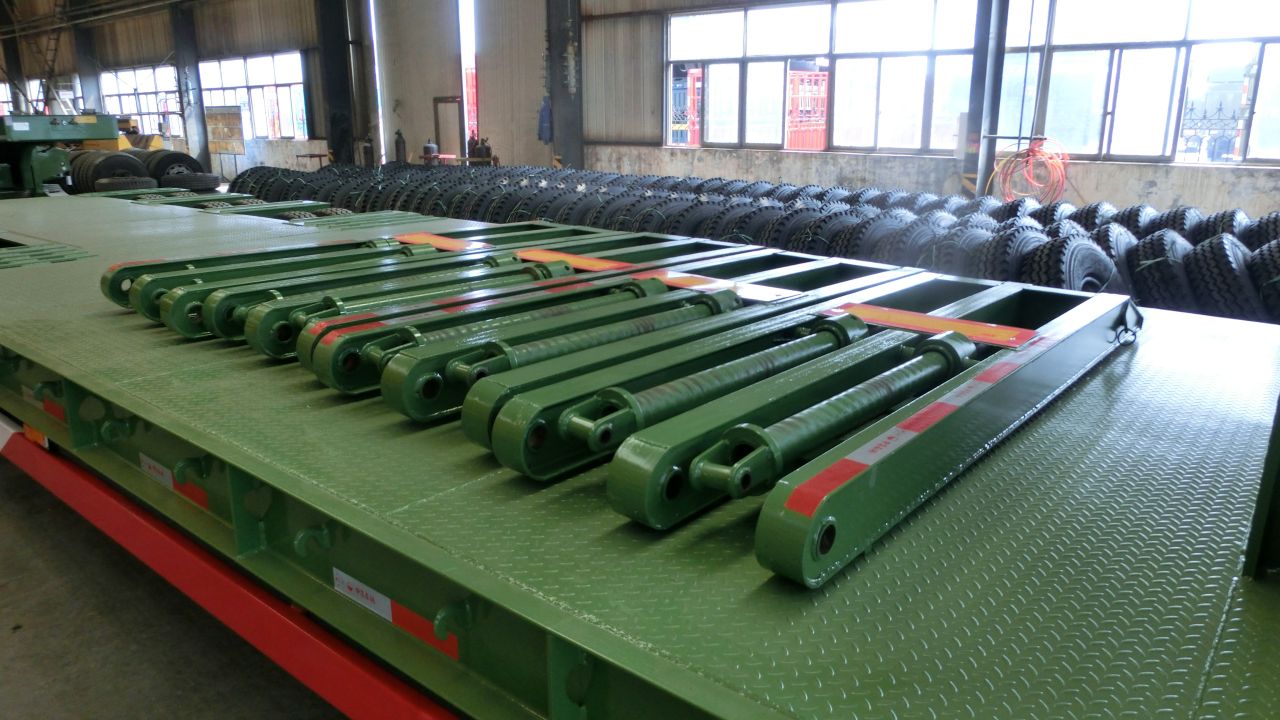

Rear ladder: 2 pcs heavy duty spring steel ladder

Welding standard: All welding is to be done by qualified welder per applicable national standard

Painting: Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um

Running Gears:

Suspension: mechanical suspension, leaf spring 13mmx90mm, China

Axle:150×150 square beam axle, 3pcs*16-ton capacity, China

Brake system: Dual line pneumatic brake, With ABS system

Brake chamber: T30/30 spring brake system on all axles, China

Air tank: 40L, 2 pcs, China

Emergency relay valve: WABCO relay valve

Tire: Double coin brand, 825R20, 12 pcs. China

Rim: 6.5-20 steel disc wheel, 10 holes ISO, 12 pcs. China

Landing gear: JOST C200 two speed telescopic manual landing gear

Electrical System:

Voltage: 24 Volt

Receptacle:7-way socket, China

Front marker lamp: White

Side marker lamp: White & Red

Rear lamp: Red

Turn signal lamp: Amber

Reflector: Per customer requirement

Wiring: Electric cable protected by PVC conduit on main frame

Accessories:

Mud guard: Steel mud guard

Tool box: 1 pc
