3 axle fuel tank trailer for sale manufacturer

Dimension： Length: 12,000mm Width: 2,500mm Height: 3800mm

Kingpin location: 500mm from the front face of the front bolster

Axle spacer: 7,500mm+1,400mm

Landing gear location: 2,500mm behind the kingpin location

(The above dimension will be adjusted according to the tractor specification)

Payload: 29,400kg

Tare weight: Approx. 10,600kg

G.V.W.R: Approx. 40,000kg

Tank Volume:42,000L +5% Vapor

Tank body Material Q235 carbon steel; Tank head thickness 6mm. Tank shell thickness 5mm

Discharge valve:3” ball valve, 2pcs.

Manhole: Safety manhole with breath valve, 2pcs.

Bottom valve: Equipped aluminum bottom valve, pneumatic control, 1pcs.

Welding standard: All welding is to be done by a qualified welder per applicable national standard.

Painting: Shot blast at SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um.

Kingpin: JOST 2″ kingpin changeable.

Suspension: Suspension with leaf spring.

Axle:13-ton capacity, 3pcs, China.

Brake system: Dual line pneumatic brake, with ABS system

Brake chamber: Target type 30/30 spring brake system on 2 axles, China.

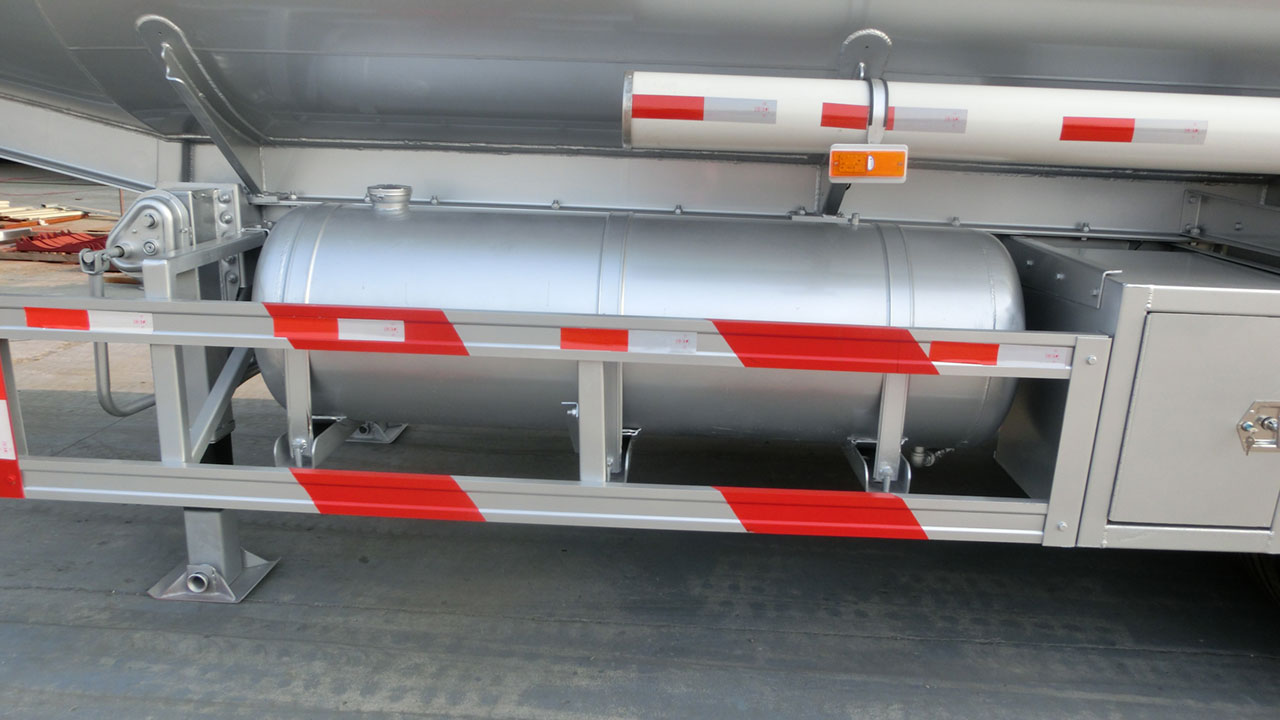

Air tank: 40L, 2 pcs, China.

Emergency relay valve: WABCO; China.

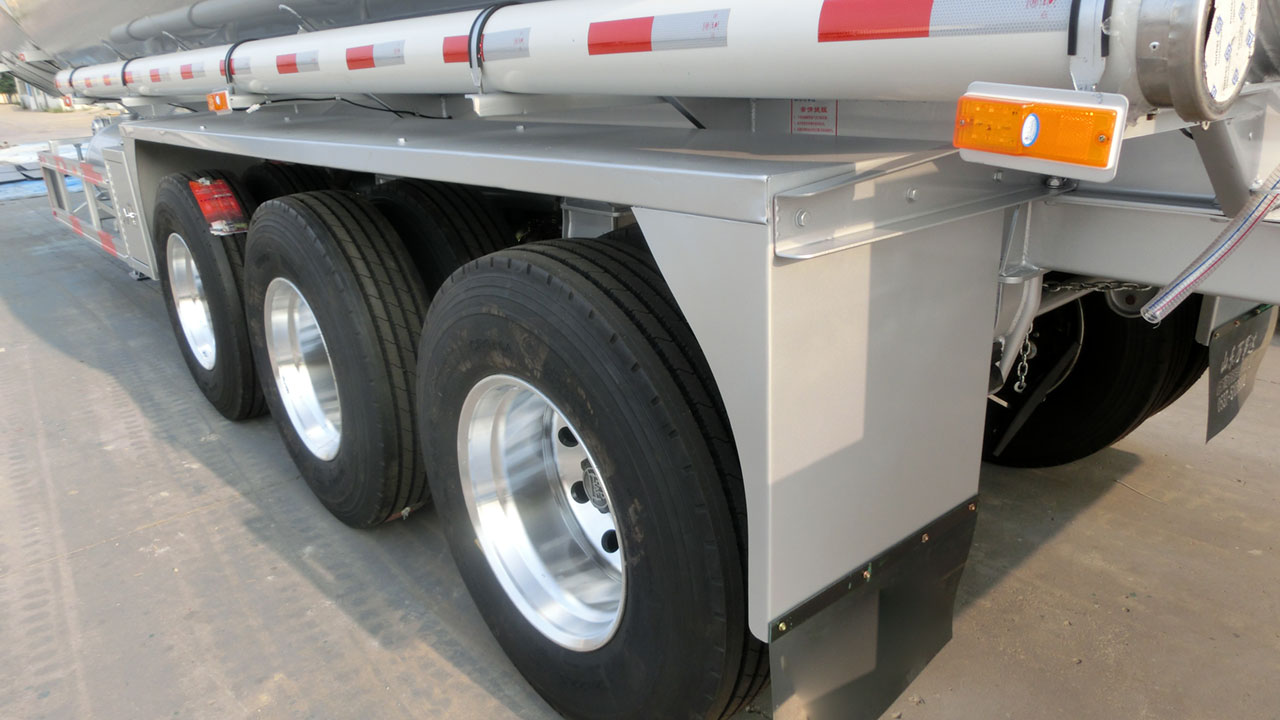

Rim: 9.0 -22.5 steel wheel, 10 holes ISO, 12 pcs. China.

Tire: Triangle brand 12R22.5, 12 pcs. China.

Landing gear: JOST brand.

Voltage: 24 Volt.

Receptacle:7-way socket, China.

Front marker Lamp: LED lamp. Including Front marker Lamp; Side marker lamp; Turn signal lamp; Rear lamp.

Reflector: Triangle reflector, red color.

Wiring: Electric cable protected by PVC conduit on main frame.

Fire extinguisher: 2 units per trailer.

Mud guard: Steel mud guard.

Spare wheel carriers:1 pc.

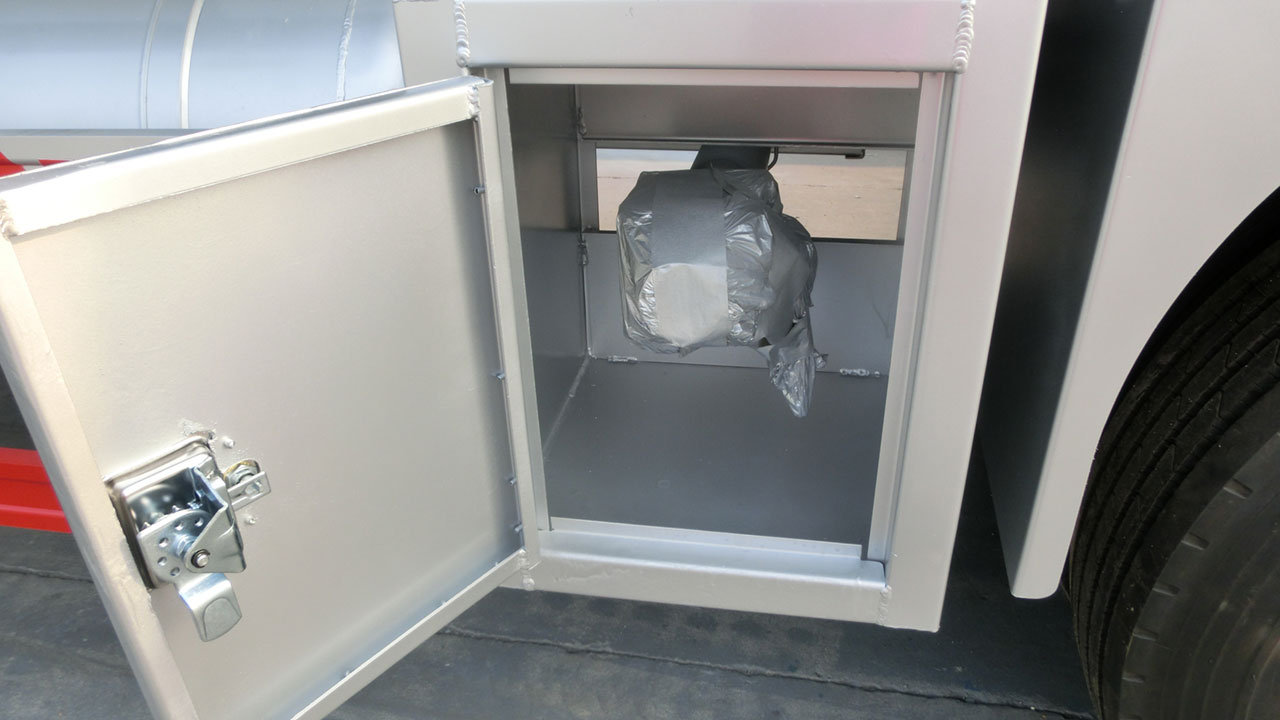

Tool box: 1 pc.
